FD100.10B-58SX0

FD100.10B-58SX0 incremental solid shaft encoder can be used in servo motor field, elevator field, industrial robot field, industrial automation control production line field, etc.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

High performance encoder with general dimensions, outer diameter of 58mm

The output pulse number can reach 5000 when it is normal, higher pulse number can be customized

The signal output mode is SIN/COS output

Using glass code plate, can produce higher resolution output pulse

Short circuit protection

Basic parameters

Outside diameter58mm

Shaft diameter6mm，8mm，10mm，12mm

Maximum speed of revolution50N/80N：6000 r；20N/30N：12000 r

Maximum shaft loadAxial/radial：50N / 80N

Starting torque＜2Ncm

Moment of inertia＜25gcm2

Electrical parameters

Power supply5VDC

Output singalSIN / COS

Working current20mA

Resolution100，300，360，500，512，1000，1024，1200，
1500，1800，2048，2500，3600，4096，
5000

Output frequencyMax 300KHz

Electrical interfaceCable connection：12×0.08mm²，0.5m
Connection：M23，12pin

Mechanical parameters

Flange typeSpannflansche / Synchronous flange

MaterialsShell：AL；flange：AL；Shaft: stainless steel

WeightAbout 310g

Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ

Surge suppressionIEC 68-2-27；300m/s² 3ms

Environmental conditions

Operating temperature﹣20…+80℃（general）
﹣40…+80℃（specific）

Storge temperature﹣40…+85℃

Protection classIP65

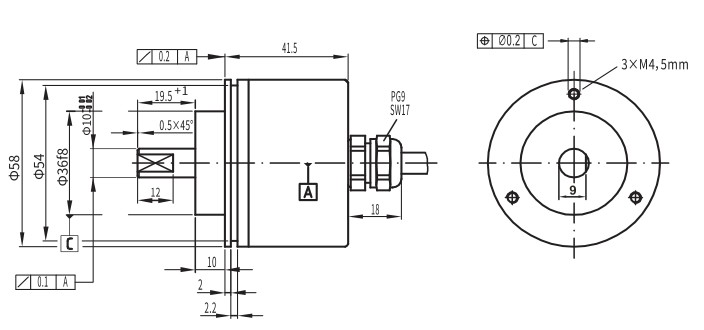

Overall dimensions

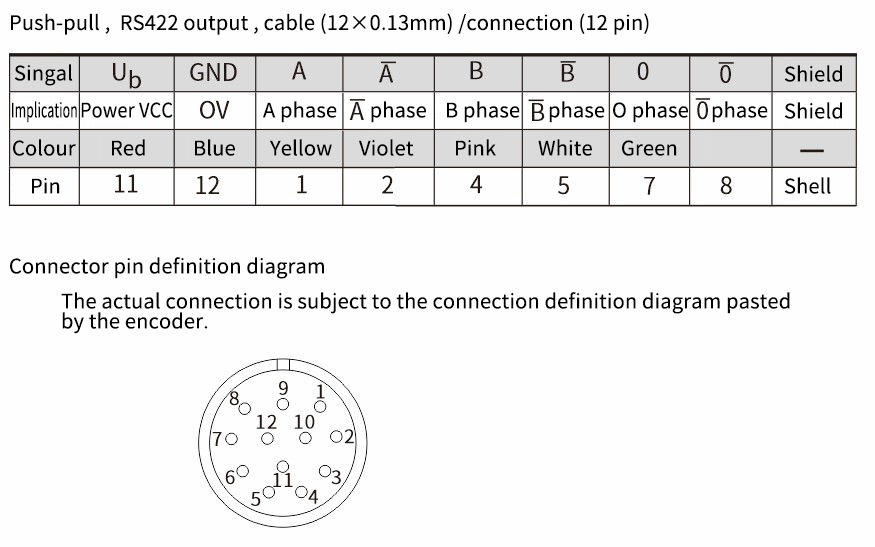

Wiring diagram
