FD100.10C-58X0

FD100.10C-58X0

FD100.10C-58X0 incremental solid shaft encoder can be used in servo motor field, elevator field, industrial robot field, industrial automation control production line field, etc.

For detailed product selection, please contact us Return
Product features Technical data Shape & Wiring Downloads Accessories
Function & Features

Magnetic induction, incremental solid shaft encoder

High performance encoder with general dimensions, outer diameter of 58mm

The output pulse number can reach 2048 when it is normal

The signal output mode is push-pull output and RS422

Short circuit protection

Basic parameters
Outside diameter58mm
Shaft diameter6mm，8mm，10mm，12mm
Maximum speed of revolution6000 r
Maximum shaft loadAxial/radial：50N / 80N
Starting torque＜2Ncm
Moment of inertia＜25gcm2
Electrical parameters
Power supply10…30VDC；5VDC
Output singal10…30VDC：Push-pull； 5VDC：RS422
Working currentPush-pull：30mA；RS422：20mA
Resolution100，300，360，500，512，1000，1024，1200，
1500，1800，2048
Output frequencyMax 300KHz
Electrical interfaceCable connection：12×0.08mm²，1m
Connection：M23，12pin
Mechanical parameters
Flange typeSpannflansche / Synchronous flange
MaterialsShell：AL；Flange：AL；Shaft: stainless steel
WeightAbout 250g
Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ
Surge suppressionIEC 68-2-27；300m/s² 3ms
Environmental conditions
Operating temperature﹣40…+80℃
Storge temperature﹣40…+85℃
Protection classIP65

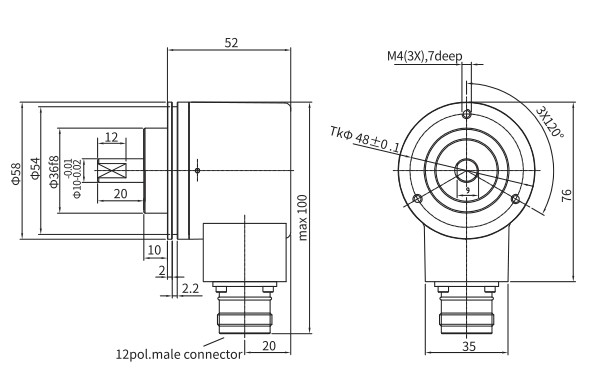

Overall dimensions

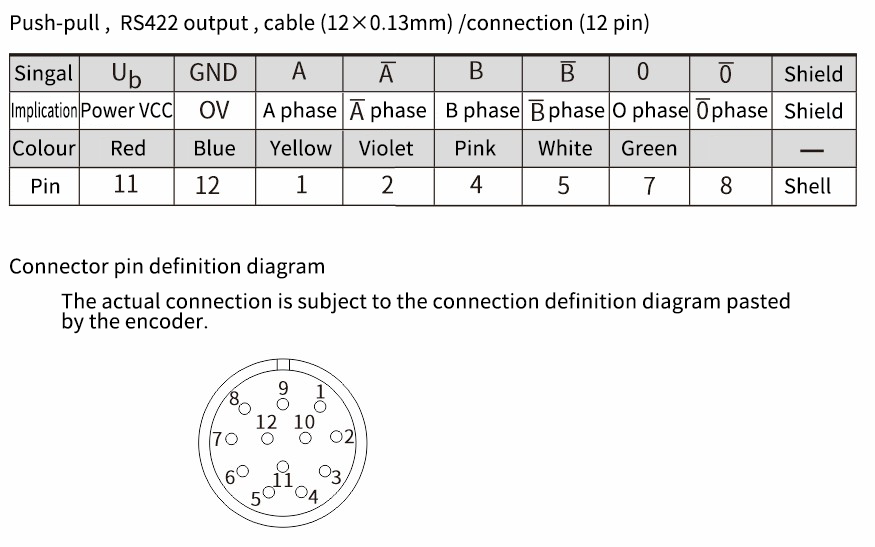

Wiring diagram
