FD100.10B-58SX1

FD100.10B-58SX1

FD100.10B-58SX1 incremental hollow shaft encoder can be used in servo motor, elevator,industrial robot, industrial automation control production line, etc.

For detailed product selection, please contact us Return
Product features Technical data Shape & Wiring Downloads Accessories
Function & Features

High performance encoder with general dimensions, outer diameter of 58mm

The output pulse number can reach 5000 when it is normal, higher pulse number can be customized

The signal output is sine/cosine.

Using glass code plate, can produce higher resolution output pulse

Short circuit protection

Basic parameters
Outside diameter58mm
Shaft sleeve diameter6mm，8mm，10mm，12mm，14mm
Maximum speed of revolution10000 r
Maximum shaft load——
Starting torque＜2Ncm
Moment of inertia＜15gcm2
Electrical parameters
Power supply10…30VDC；5VDC
Output singalSIN/COS
Working current20mA
Resolution100，300，360，500，512，1000，1024，1200，
1500，1800，2048，2500，3600，4096，
5000
Output frequencyMax 160KHz
Electrical interfaceCable connection：12×0.08mm²，0.5m
Connection：M23，12 pin
Mechanical parameters
Flange type——
MaterialsShell：AL；flange：AL；Shaft: stainless steel
WeightAbout 300g
Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ
Surge suppressionIEC 68-2-27；200m/s² 3ms
Environmental conditions
Operating temperature﹣20…+80℃（general）
﹣40…+80℃（specific）
Storge temperature﹣40…+85℃
Protection classIP54 / IP65

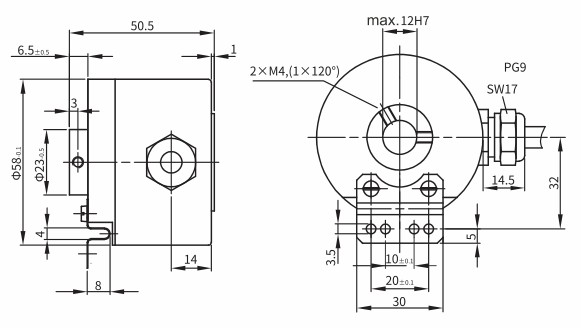

Overall dimensions

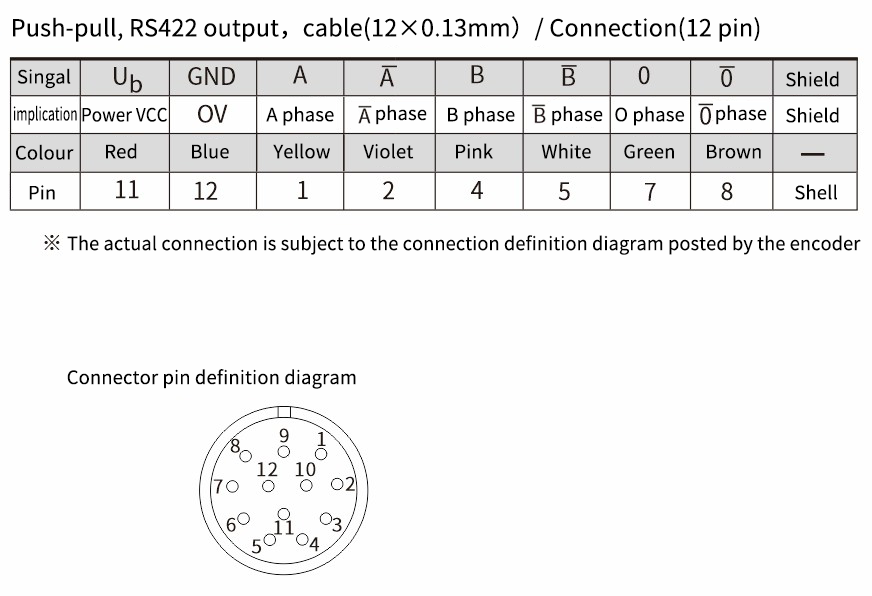

Wiring diagram

FD100.10B-58SX1接线图~英 .png
