FD100.10B-76X1

FD100.10B-76X1 incremental hollow shaft encoder can be used in servo motor, elevator, industrial robot, industrial automation control production line, etc.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

High performance encoder with larger dimensions, outer diameter of 76mm

Bushing diameter range in 8...28 mm

The output pulse number can be up to 10000 when it is normal, higher pulse number can be customized

The signal output mode is push-pull output or RS422 output

Short circuit protection

Basic parameters

Outside diameter76mm

Shaft sleeve diameter8mm，10mm，12mm，14mm，16mm，20mm，
24mm，25mm，28mm

Maximum speed of revolution6000 r

Maximum shaft load——

Starting torque＜8Ncm

Moment of inertia＜35gcm2

Electrical parameters

Power supply5…30VDC；5VDC

Output singal5…30VDC：Push-pull；5VDC：RS422

Working currentPush-pull：30mA；RS422：20mA

Resolution100，300，360，500，512，600，1000，1024，
1200，1500，2000，2048，2500，3600，
4096，5000，8192，10000

Output frequencyMax 300KHz

Electrical interfaceCable connection：12×0.08mm²，0.5m
Connection：M23，12 pin（specific）

Mechanical parameters

Flange type——

MaterialsShell：AL；Flange：AL；Shaft: stainless steel

WeightAbout 500g

Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ

Surge suppressionIEC 68-2-27；300m/s² 3ms

Environmental conditions

Operating temperature﹣40…+80℃

Storge temperature﹣40…+85℃

Protection classIP54 / IP65

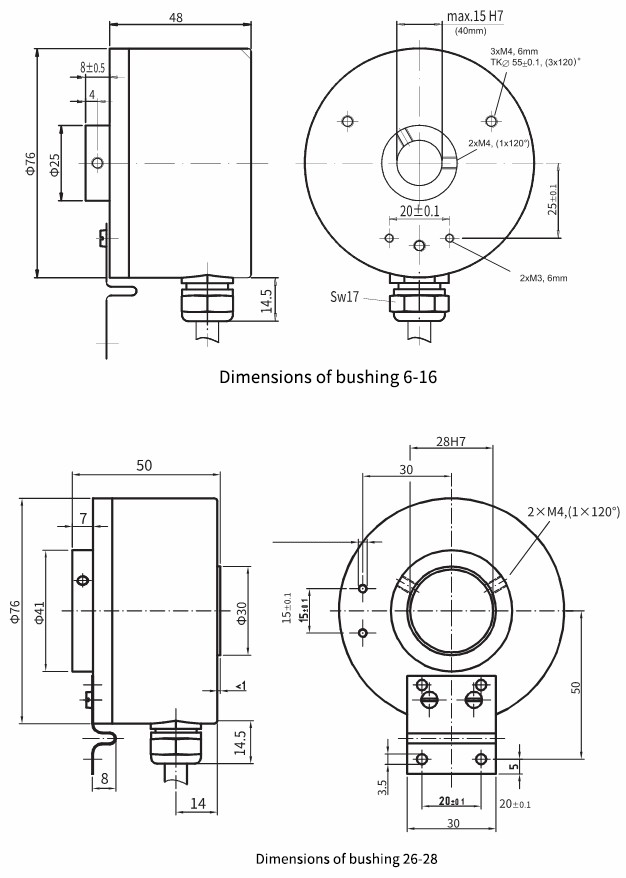

Overall dimensions

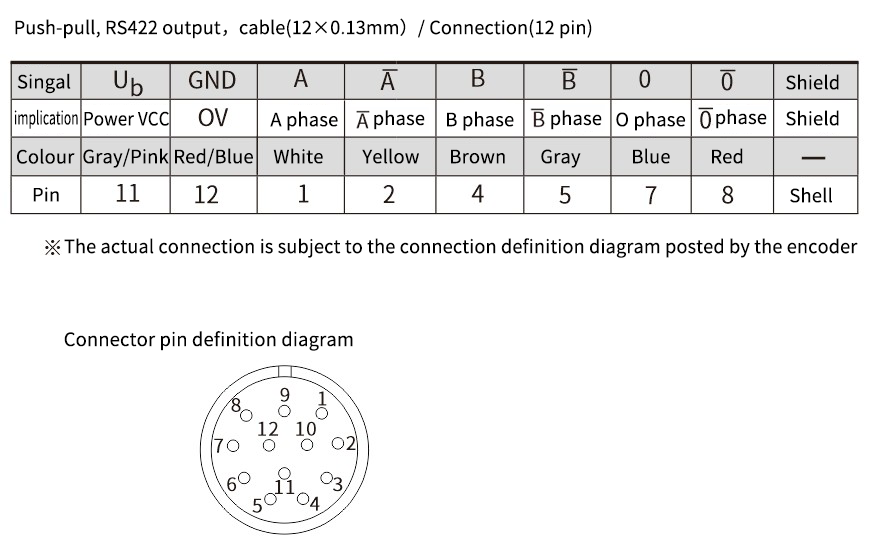

Wiring diagram
