FD100.10B-87X1

FD100.10B-87X1 incremental hollow shaft encoder can be used in servo motor, elevator,industrial robot, industrial automation control production line, etc.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

High performance encoder with larger shape size, outer diameter of 87mm

Bushing diameter range in 16...45 mm

The output pulse number can be up to 10000 when it is normal, higher pulse number can be customized

The signal output mode is push-pull output or RS422 output

Above 2500PPR, glass code plate is used

Short circuit protection

Basic parameters

Outside diameter87mm

Shaft sleeve diameter16mm，20mm，24mm，25mm，30mm，
38mm，45mm

Maximum speed of revolution3500 r

Maximum shaft load——

Starting torque＜8Ncm

Moment of inertia＜40gcm2

Electrical parameters

Power supply5…30VDC；5VDC

Output singal5…30VDC：Push-pull；5VDC：RS422

Working currentPush-pull：30mA；RS422：20mA

Resolution100，300，360，500，512，600，1000，1024，
1200，1500，2000，2048，2500，3600，
4096，5000，8192，10000

Output frequencyMax 300KHz

Electrical interfaceCable connection：12×0.08mm²，0.5m
Connection：M23，12 pin（specific）

Mechanical parameters

Flange type——

MaterialsShell：AL；Flange：AL；Shaft: stainless steel

WeightAbout 900g

Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ

Surge suppressionIEC 68-2-27；300m/s² 3ms

Environmental conditions

Operating temperature﹣20…+70℃

Storge temperature﹣40…+80℃

Protection classIP65

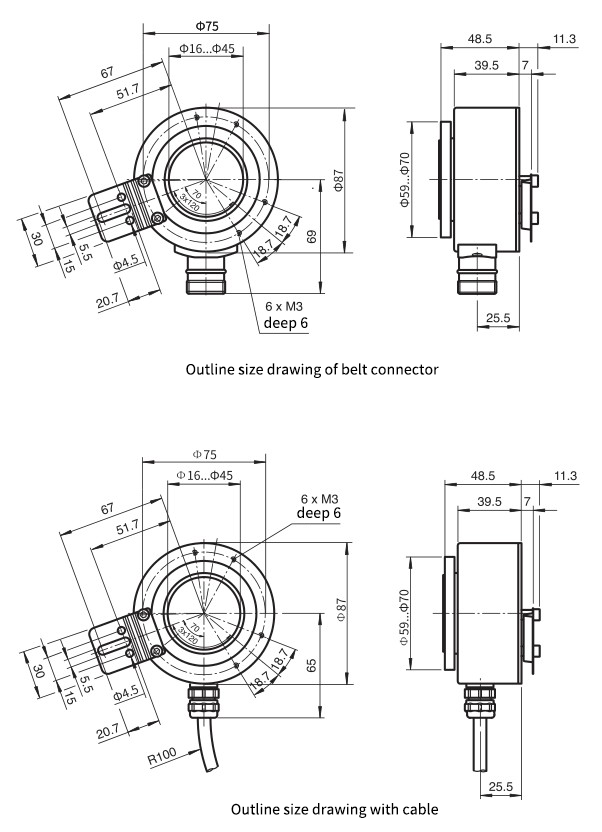

Overall dimensions

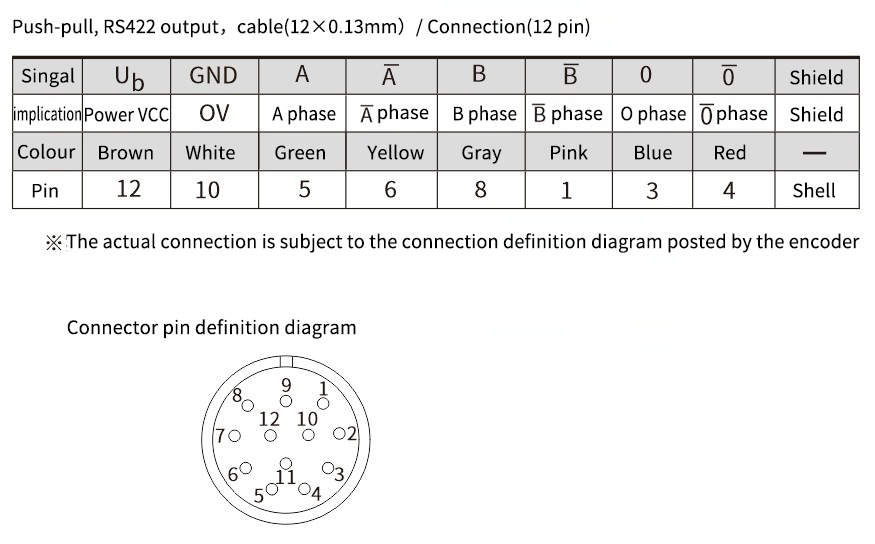

Wiring diagram
