FD100.10B-120X1

FD100.10B-120X1 incremental hollow shaft encoder can be used in servo motor, elevator, industrial robot, industrial automation control production line, etc.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

High performance encoder with large shape size, outer diameter of is 120mm

Bushing diameter range is 28...55 mm

The output pulse number can be up to 10000 when it is normal, higher pulse number can be customized

The signal output mode is push-pull output and RS422 output

Above 2500PPR, glass code plate is used

Short circuit protection

Basic parameters

Outside diameter120mm

Shaft sleeve diameter28mm，30mm，35mm，38mm，40mm，
45mm，50mm，55mm

Maximum speed of revolution4000 r

Maximum shaft load——

Starting torque＜10Ncm

Moment of inertia＜100gcm2

Electrical parameters

Power supply5…30VDC；5VDC

Output singal5…30VDC：Push-pull；5VDC：RS422

Working currentPush-pull：30mA；RS422：20mA

Resolution100，300，360，500，512，600，1000，1024，
1200，1500，2000，2048，2500，3600，
4096，5000，8192，10000

Output frequencyMax 300KHz

Electrical interfaceCable connection：12×0.08mm²，0.5m
Connection：M23，12 pin

Mechanical parameters

Flange type——

MaterialsShell：AL；flange：AL；Shaft: stainless steel

WeightAbout 1200g

Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ

Surge suppressionIEC 68-2-27；300m/s² 3ms

Environmental conditions

Operating temperature﹣40…+80℃

Storge temperature﹣40…+85℃

Protection classIP65

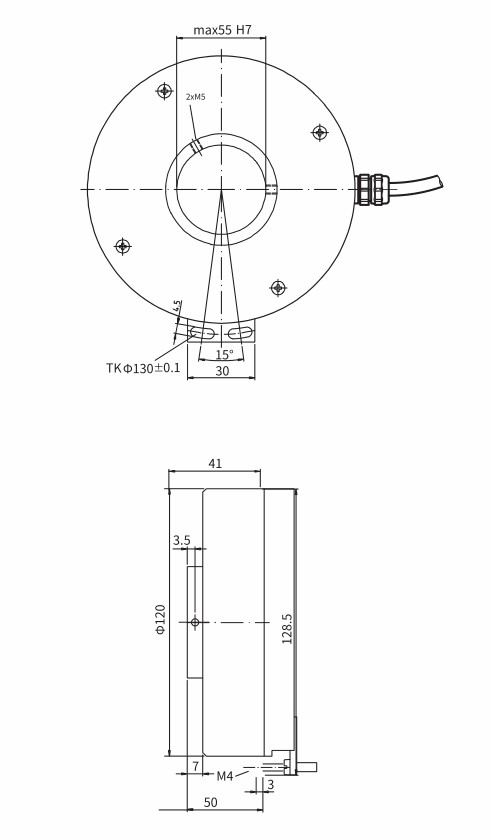

Overall dimensions

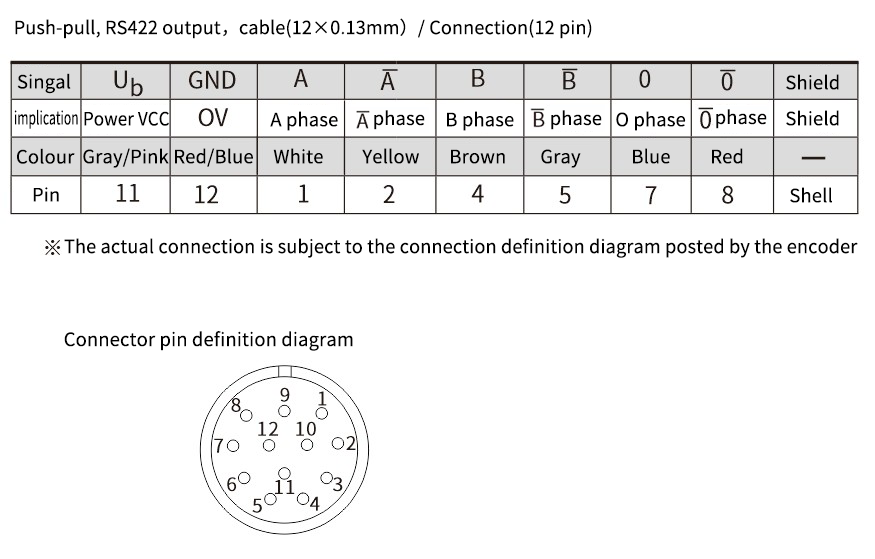

Wiring diagram
