PE05 - digital type

PE05 - digital type

PE05 fiber amplifier can be simple and intelligent automatic brightness adjustment, to achieve accurate positioning of miniaturized objects,It is widely used in light industry, electronics, packaging, textile, machinery manufacturing and other industries.

For detailed product selection, please contact us Return
Product features Technical data Shape & Wiring Downloads Accessories
Function & Features

Universal design, easy to operate

Low price, cost saving for users

Powerful performance, can automatically adjust the amount of light

With MEGA and counter functions

Instant alarm display, user-friendly design

Six measurement modes can be switched quickly

Basic parameters
Output modePNP/NPN output
Control output number1
Connection typeLead out pattern
Light source (luminous wavelength)Red 4 element LED（625nm）
Response time50μs（HIGH SPEED）
250μs（FINE）
500μs（TURBO)
1ms（SUPER）
4ms（ULTRA）
16ms（MEGA)
Setting of sensitivityIntelligent adjustment (2 points to teach,
maximum sensitivity adjustment)
Protection circuitPower supply reverse connection protection,
output short circuit protection, output
reverse connection protection
Maximum number of connected stations16 sets
Electrical parameters
Power supply12…24V DC，Including 10% fluctuation p-p
PowerBelow 720mW (when the supply voltage is 24V,
the consumption current is 30mA)
Control outputLoad current: 100mA or less
Residual voltage: 1V or less
The current is less than 0.1mA without output
Insulation ResistanceAbove 20MΩ (with DC500V megohm meter)
Mechanical parameters
MaterialShell, protective cover: polycarbonate (PC);
Conductor skin: PVC
Vibration (durability)10…55Hz，Double amplitude 1.5mm, X, Y, Z
2h in each direction
Impact (durability)500m/s²，3 times in each direction of the X, Y
and Z axes
Weight（net weight）About 75g
Environmental conditions
Use ambient illuminationIncandescent lamp: up to 20000lx
Sunlight: below 30000lx
Operating ambient temperatureAction Status: 1…2 sets of connection -25…+55℃
3…10 sets of connection -25…+50℃
11…16 sets of connection -25…+45℃
Operating environment humidityOperation, storage: in the above ambient
temperature range, each 35... 85%RH

Overall dimensions

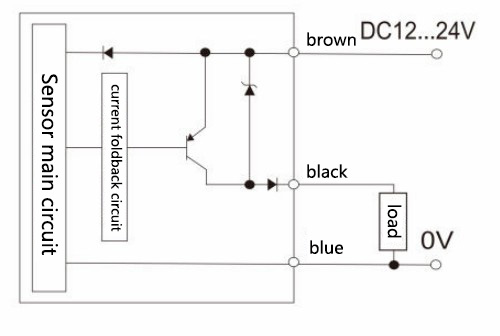

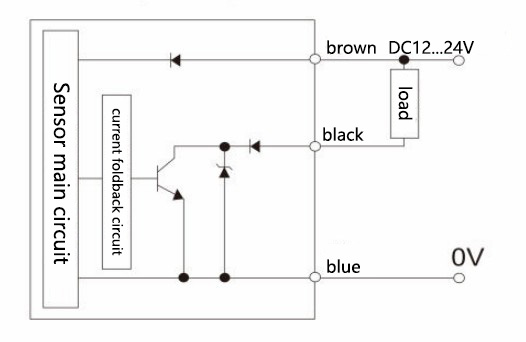

Wiring diagram
