PE-F1M3CL1

PE-F1M3CL1 thread reflective fiber optic element

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Type screw M3

1m free cut

Coaxial configuration

L-shape

Bending radius R2

Optical axis minimum detection object Φ1.0mm

Basic parameters

Fiber optic componentsReflection-type

SpecificationType screw M3

Structure typeCoaxial

ShapeL shape

Bending radiusR2

Optical axis minimum detection objectΦ1.0mm

Detection distanceHSP：32；FINE：70；TURBO：110；
SUPER：170；ULTRA：270；MEGA：400

Mechanical parameters

Overall dimensions1m free cut（Φ1.3×2）

Environmental conditions

Operating temperature﹣40…+70℃

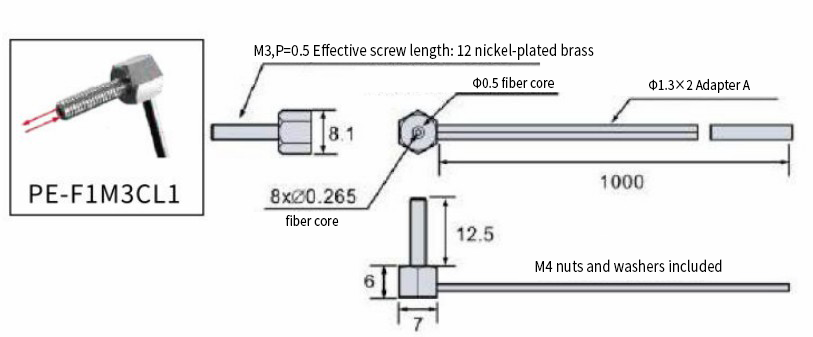

Overall dimensions
