PE-F1M3C3

PE-F1M3C3 thread reflective fiber optic element

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Type screw M3

1m free cut

Coaxial configuration

Straight shape

Bending radius R10

Optical axis minimum detection object Φ1.0mm

Basic parameters

Fiber optic componentsReflection-type

SpecificationType screw M3

Structure typeCoaxial

ShapeStraight shape

Bending radiusR10

Optical axis minimum detection objectΦ1.0mm

Detection distanceHSP：36；FINE：72；TURBO：115；
SUPER：190；ULTRA：290；MEGA：450

Mechanical parameters

Overall dimensions1m free cut（Φ1.3×2）

Environmental conditions

Operating temperature﹣40…+70℃

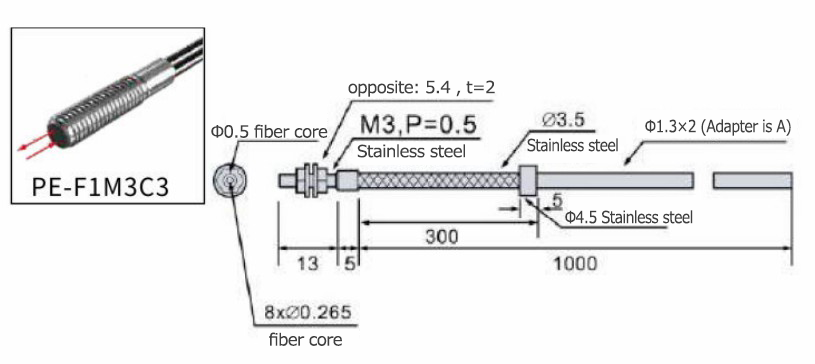

Overall dimensions
