FD-MS01R

FD-MS01R series magnetic switch is suitable for standard rod cylinder, ISO meter cylinder, standard circular cylinder.
Type of sample：FD-MS01RS2.*

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Standard rod cylinder, ISO meter cylinder, standard circular cylinder, using fixture

It can match yadeke DS1 switch

Output reed tube type

High positioning accuracy, strong anti-interference ability

The movement is sensitive and does not misbehave

Locate the magnetic ring position, non-magnetic position

Cable and connector types are optional

Basic parameters

Switching LogicSPST NO

Induction switch typeWith nodal reed tube type

indicator lampRed LED

Sensitivity of induction45…55 gauss

Maximum switching frequency200Hz

Protection CircuitWithout

Electrical parameters

Power supply5…240V DC/AC

Switching current100mA Max

Maximum contact capacity10W Max

Internal consumption currentWithout

The residual pressure drop2.5V Max@100mA DC

leakage currentWithout

Mechanical parameters

CableΦ2.9，2C Grey oil resistant PVC

Impact resistance30G

Vibration9G

Environmental conditions

Operating temperature﹣10…70℃

Protection classIP67

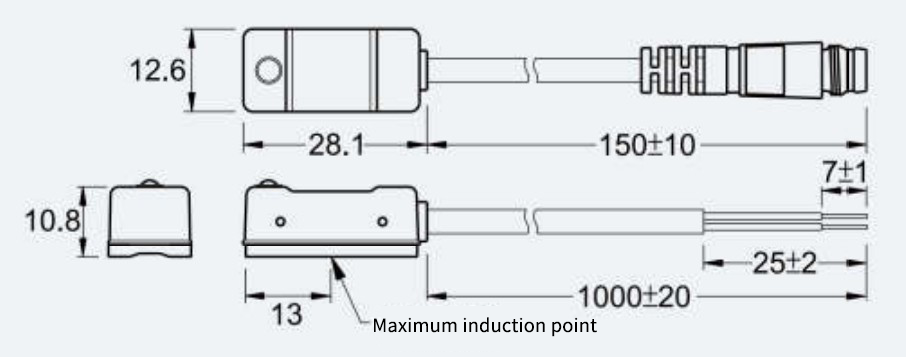

Overall dimensions

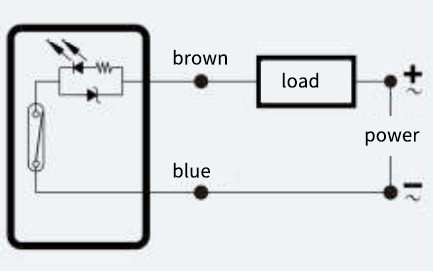

Wiring diagram
