FD-MS01D

FD-MS01D series magnetic switch is suitable for standard rod cylinder, ISO meter cylinder, standard circular cylinder.
Type of sample：FD-MS01DS2.*

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Standard rod cylinder, ISO meter cylinder, standard circular cylinder, using fixture

It can match yadeke DS1 switch

Two wire type no contact type

High positioning accuracy, strong anti-interference ability

The movement is sensitive and does not misbehave

Locate the magnetic ring position, non-magnetic position

Cable and connector types are optional

Basic parameters

Switching LogicElectronic, normally open type

Induction switch typeTwo wire type without contact

indicator lampRed LED

Sensitivity of induction40…800 gauss

Maximum switching frequency1000Hz

Protection CircuitSurge absorption protection

Electrical parameters

Power supply10…30VDC

Switching current50mA Max

Maximum contact capacity1.4W Max

Internal consumption current40μA Max@24V

The residual pressure drop2.65V Max@500mA DC

leakage current90μA Max@24V

Mechanical parameters

CableΦ2.9，2C Grey oil resistant PVC

Impact resistance50G

Vibration9G

Environmental conditions

Operating temperature﹣10…70℃

Protection classIP67

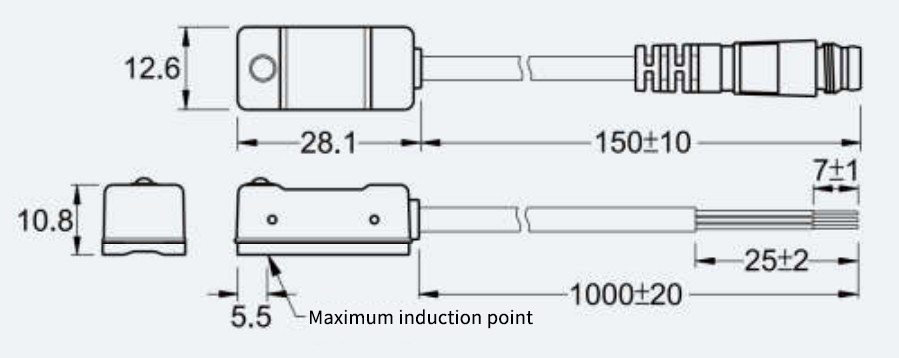

Overall dimensions

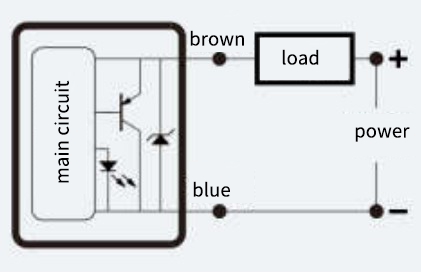

Wiring diagram
