FD-MS01P

FD-MS01P series magnetic switch is suitable for standard rod cylinder, ISO meter cylinder, standard circular cylinder.
Type of sample：FD-MS01PS2.*

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Standard rod cylinder, ISO meter cylinder, standard circular cylinder, using fixture

It can match yadeke DS1 switch

PNP type without contact

High positioning accuracy, strong anti-interference ability

The movement is sensitive and does not misbehave

Locate the magnetic ring position, non-magnetic position

Cable and connector types are optional

Basic parameters

Switching LogicElectronic, normally open type

Induction switch typeNo contact PNP

indicator lampGreen LED

Sensitivity of induction40…800 gauss

Maximum switching frequency5000Hz

Protection CircuitPower supply polarity reverse protection;
Surge absorption protection

Electrical parameters

Power supply5…30VDC

Switching current200mA Max

Maximum contact capacity6W Max

Internal consumption current7.5mA Max@24V

The residual pressure drop0.5V Max@200mA DC

leakage current0.01mA Max

Mechanical parameters

CableΦ2.9，3C black oil resistant PVC

Impact resistance50G

Vibration9G

Environmental conditions

Operating temperature﹣10…70℃

Protection classIP67

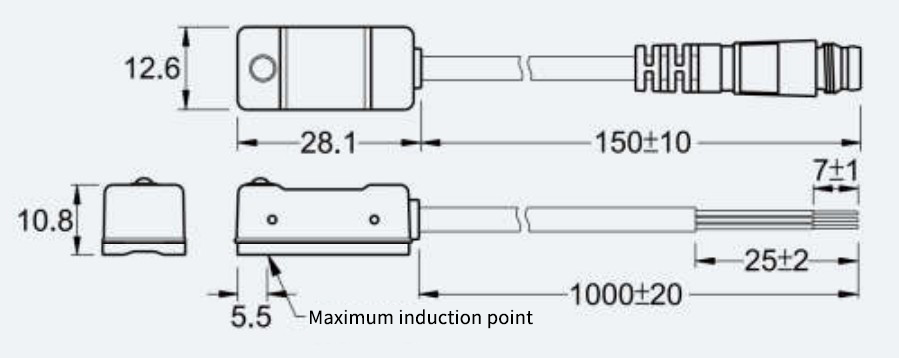

Overall dimensions

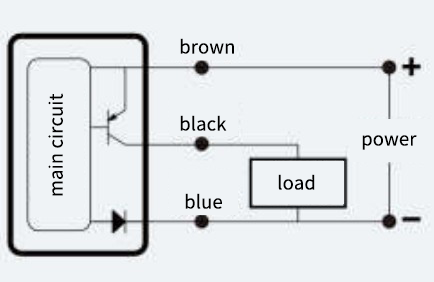

Wiring diagram
