FD-MS01T

FD-MS01T

FD-MS01T series magnetic switch is suitable for standard rod cylinder, ISO meter cylinder, standard circular cylinder.
Type of sample：FD-MS01TS2.*

For detailed product selection, please contact us Return
Product features Technical data Shape & Wiring Downloads Accessories
Function & Features

Standard rod cylinder, ISO meter cylinder, standard circular cylinder, using fixture

It can match yadeke DS1 switch

Push-pull type

High positioning accuracy, strong anti-interference ability

The movement is sensitive and does not misbehave

Locate the magnetic ring position, non-magnetic position

Cable and connector types are optional

Basic parameters
Switching LogicElectronic, normally open type
Induction switch typePush-pull type
indicator lampRed LED
Sensitivity of induction40…800 gauss
Maximum switching frequency5000Hz
Protection CircuitPower supply polarity reverse protection;
Surge absorption protection
Electrical parameters
Power supply5…30VDC
Switching current100mA Max
Maximum contact capacity3W Max
Internal consumption current7.5mA Max@24V
The residual pressure drop1V Max@100mA DC
leakage current0.01mA Max
Mechanical parameters
CableΦ2.9，3C black oil resistant PVC
Impact resistance50G
Vibration9G
Environmental conditions
Operating temperature﹣10…70℃
Protection classIP67

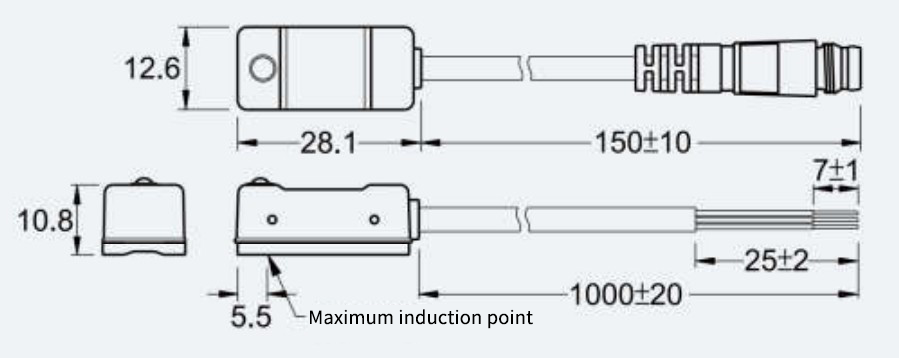

Overall dimensions

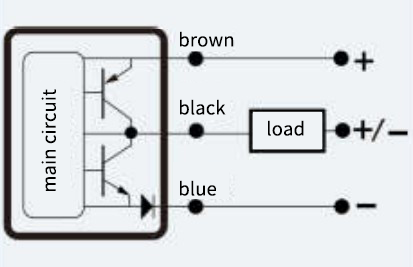

Wiring diagram
