FD-MS05R

FD-MS05R series magnetic switches are suitable for Φ4 cylinder grooves.
Type of sample：FD-MS05RS2.*

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Suitable for C type cylinder groove Φ4 specification

SPST normally open type

Nodal reed tube type

Install directly in groove without clamp

Cable, connector, quick plug type optional

High positioning accuracy, strong anti-interference ability

Nimble

Basic parameters

Switching LogicSPST normally open type

Induction switch typeWith nodal reed tube type

indicator lampRed LED

Sensitivity of induction45…55 gauss

Maximum switching frequency1000Hz

Protection CircuitWithout

Electrical parameters

Power supply5…120V DC/AC

Switching current100mA Max

Maximum contact capacity10W Max

Internal consumption currentWithout

The residual pressure drop2.5V Max@100mA DC

leakage currentWithout

Mechanical parameters

CableΦ2.9，2C gray oil resistant PVC

Impact resistance30G

Vibration9G

Environmental conditions

Operating temperature﹣10…70℃

Protection classIP67

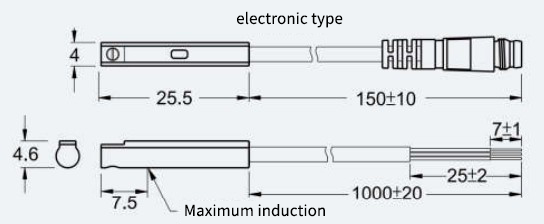

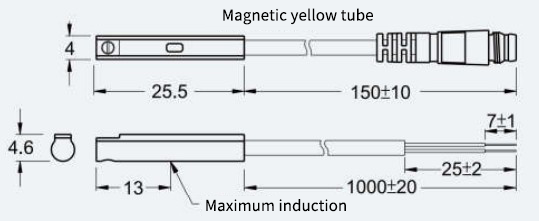

Overall dimensions



Wiring diagram
