FD-MS05P

FD-MS05P series magnetic switches are suitable for Φ4 cylinder grooves.
Type of sample：FD-MS05PS2.*

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Suitable for C type cylinder groove Φ4 specification

Electronic normally open type, can be replaced by FD-MR01 series

PNP type without contact

Install directly in groove without clamp

Cable, connector, quick plug type optional

High positioning accuracy, strong anti-interference ability

Nimble

Basic parameters

Switching LogicElectronic, normally open type

Induction switch typeNo contact PNP

indicator lampGreen LED

Sensitivity of induction40…800 gauss

Maximum switching frequency5000Hz

Protection CircuitPower supply polarity reverse protection;
Surge absorption protection

Electrical parameters

Power supply5…30VDC

Switching current200mA Max

Maximum contact capacity6W Max

Internal consumption current7.5mA Max@24V

The residual pressure drop0.5V Max@200mA DC

leakage current0.01mA Max

Mechanical parameters

CableΦ2.9，3C black oil resistant PVC

Impact resistance50G

Vibration9G

Environmental conditions

Operating temperature﹣10…70℃

Protection classIP67

Overall dimensions

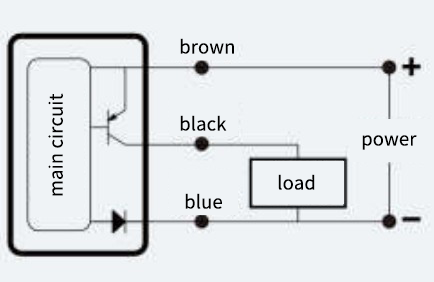

Wiring diagram
