FD-MS06R

FD-MS06R

FD-MS06R series magnetic switch is suitable for C type cylinder groove Φ4 specifications.
Type of sample：FD-MS06RS2.*

For detailed product selection, please contact us Return
Product features Technical data Shape & Wiring Downloads Accessories
Function & Features

Suitable for C type cylinder groove Φ4 specification

SPST normally open type

Nodal reed tube type

Can replace FD-MS05, upgrade the fixed screw structure strength, the price is higher than MS05

Available with SMC-C grooved cylinders

Install directly in groove without clamp

Cable, connector, quick plug type optional

High positioning accuracy, strong anti-interference ability

Nimble

Basic parameters
Switching LogicSPST normally open type
Induction switch typeWith nodal reed tube type
indicator lampRed LED
Sensitivity of induction45…50 gauss
Maximum switching frequency1000Hz
Protection CircuitWithout
Electrical parameters
Power supply5…120V DC/AC
Switching current100mA Max
Maximum contact capacity3.5W Max
Internal consumption currentWithout
The residual pressure drop2.5V Max@100mA DC
leakage currentWithout
Mechanical parameters
CableΦ2.9，2C gray oil resistant PVC
Impact resistance30G
Vibration9G
Environmental conditions
Operating temperature﹣10…70℃
Protection classIP67

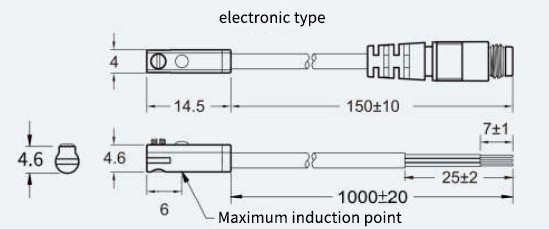

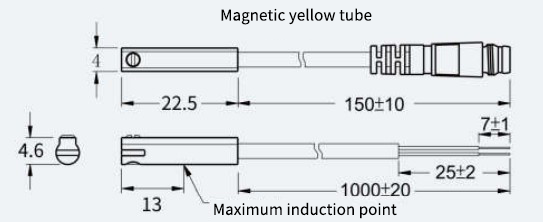

Overall dimensions








Wiring diagram
