FD-CHMD25 laser hot and cold metal detector can be used for metal detection at various temperatures.Commonly used to detect all kinds of hot and cold metal, replace the photoelectric switch, heating furnace door detection.
Type of sample：FD-CHMD25-C1T1.*
A modulated red visible laser beam is used for measurement
Long measuring distance, more than 20m, integrated design with reflector
Both cold and hot products can be tested
Objects with a size of 6mm can be detected with a reflecting prism
The edge resolution is 3mm/m
Infrared filter function can be used for heating furnace mouth
3R Visible laser beam
The cast aluminum housing is of solid construction and IP65 protection rating
With water cooling air cooling function
Measuring Angle range is wide
Multiple switching output (relay output /PNP/NPN)
- 10... 40℃ without cooling; - 10... 60℃ using air cooling; - 20... 70℃ using water cooling
The average trouble-free time is 32,000 hours
Suitable for dusty, steam and other harsh environment

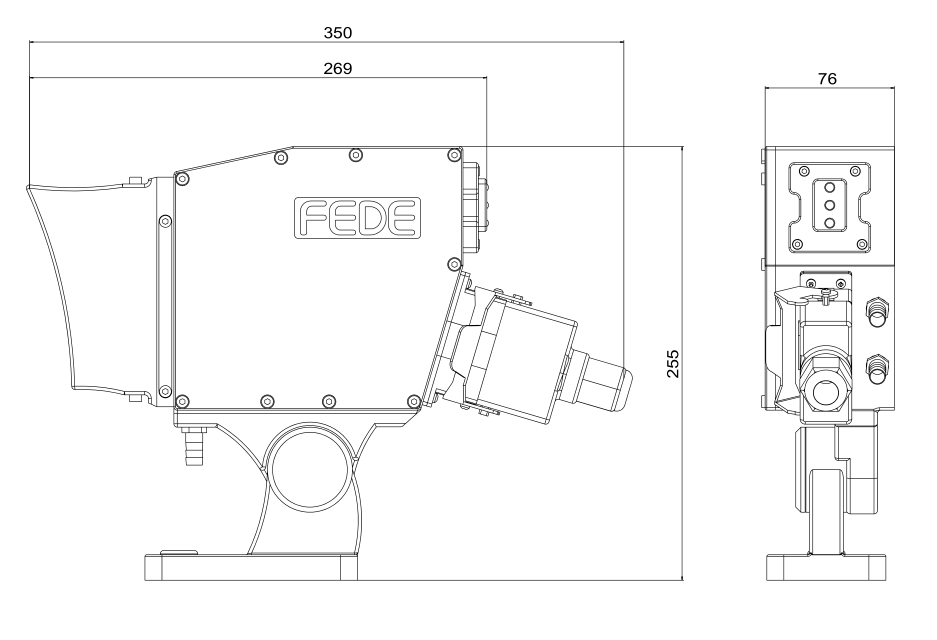

Overall dimensions

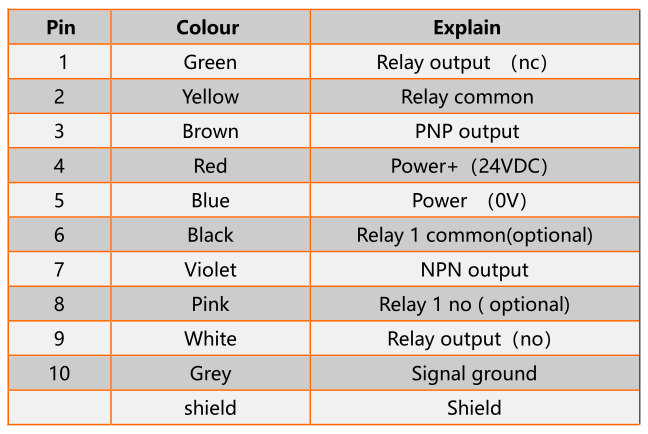

Wiring diagram
