FD-MS06SD

FD-MS06SD

FD-MS06SD series magnetic switch is suitable for C type cylinder groove Φ4 specifications.
Type of sample：FD-MS06SDS2.*

For detailed product selection, please contact us Return
Product features Technical data Shape & Wiring Downloads Accessories
Function & Features

Suitable for C type cylinder groove Φ4 specification

Electronic normally open type

Two wire type no contact type

Available with SMC-C grooved cylinders

L to qualify

Especially suitable for ultra-short stroke cylinder

Install directly in groove without clamp

Cable, connector, quick plug type optional

High positioning accuracy, strong anti-interference ability

Nimble

Basic parameters
Switching LogicElectronic, normally open type
Induction switch typeTwo wire type without contact
indicator lampRed LED
Sensitivity of induction40…800 gauss
Maximum switching frequency1000Hz
Protection CircuitSurge absorption protection
Electrical parameters
Power supply10…30VDC
Switching current50mA Max
Maximum contact capacity1.4W Max
Internal consumption current40μA Max@24V
The residual pressure drop2.65V Max@500mA DC
leakage current90μA Max@24V
Mechanical parameters
CableΦ2.9，2C black oil resistant PVC
Impact resistance50G
Vibration9G
Environmental conditions
Operating temperature﹣10…70℃
Protection classIP67

Overall dimensions

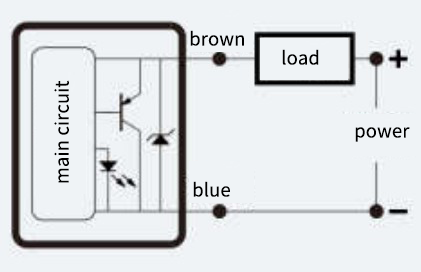

Wiring diagram
