FD-MS07D

FD-MS07D series magnetic switch is suitable for SMC T-cylinder groove.
Type of sample：FD-MS07DS2.*

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Suitable for SMC T-cylinder groove

Electronic normally open type

Two wire type no contact type

L to qualify

Simple structure, cheap price

Install directly in groove without clamp

Cable, connector, quick plug type optional

High positioning accuracy, strong anti-interference ability

Nimble

Basic parameters

Switching LogicElectronic, normally open type

Induction switch typeTwo wire type without contact

indicator lampRed LED

Sensitivity of induction40…800 gauss

Maximum switching frequency1000Hz

Protection CircuitSurge absorption protection

Electrical parameters

Power supply10…30VDC

Switching current50mA Max

Maximum contact capacity1.4W Max

Internal consumption current40μA Max@24V

The residual pressure drop2.65V Max@500mA DC

leakage current90μA Max@24V

Mechanical parameters

CableΦ2.9，2C black oil resistant PVC

Impact resistance50G

Vibration9G

Environmental conditions

Operating temperature﹣10…70℃

Protection classIP67

Overall dimensions

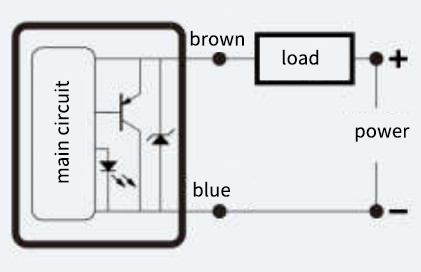

Wiring diagram
