FD-MS08R

FD-MS08R series magnetic switches are suitable for SMC T cylinder grooves.
Type of sample：FD-MS08RS2.*

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Suitable for SMC T cylinder groove

SPST normally open type

Nodal reed tube type

Compact and simple, easy to install

Install directly in groove without clamp

Cable, connector, quick plug type optional

High positioning accuracy, strong anti-interference ability

Nimble

Basic parameters

Switching LogicSPST normally open type

Induction switch typeWith nodal reed tube type

indicator lampRed LED

Sensitivity of induction40…50 gauss

Maximum switching frequency200Hz

Protection CircuitWithout

Electrical parameters

Power supply5…240V DC/AC

Switching current100mA Max

Maximum contact capacity10W Max

Internal consumption currentWithout

The residual pressure drop2.5V Max@100mA DC

leakage currentWithout

Mechanical parameters

CableΦ3.3，2C gray oil resistant PVC

Impact resistance30G

Vibration9G

Environmental conditions

Operating temperature﹣10…70℃

Protection classIP67

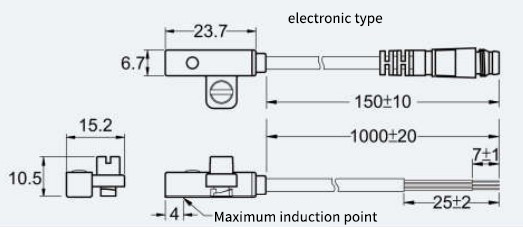

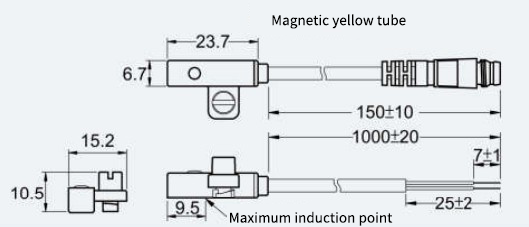

Overall dimensions



Wiring diagram
