FD-MS12P

FD-MS12P

FD-MS12P series magnetic switches are suitable for FESTO T-cylinder grooves.
Type of sample：FD-MS12PS2.*

For detailed product selection, please contact us Return
Product features Technical data Shape & Wiring Downloads Accessories
Function & Features

Suitable for FESTO T cylinder groove

Electronic normally open type

PNP type without contact

Install directly in groove without clamp

Cable, connector, quick plug type optional

High positioning accuracy, strong anti-interference ability

Nimble

Basic parameters
Switching LogicElectronic, normally open type
Induction switch typeNo contact PNP
indicator lampGreen LED
Sensitivity of induction40…800 gauss
Maximum switching frequency5000Hz
Protection CircuitPower supply polarity reverse protection;
Surge absorption protection
Electrical parameters
Power supply5…30VDC
Switching current200mA Max
Maximum contact capacity6W Max
Internal consumption current7.5mA Max@24V
The residual pressure drop0.5V Max@200mA DC
leakage current0.01mA Max
Mechanical parameters
CableΦ2.9，3C black oil resistant PVC
Impact resistance50G
Vibration9G
Environmental conditions
Operating temperature﹣10…70℃
Protection classIP67

Overall dimensions

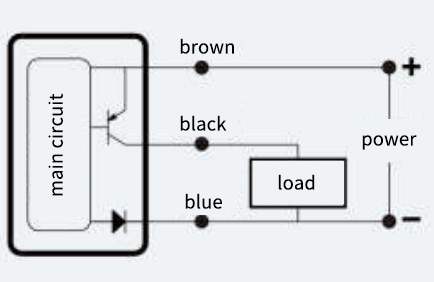

Wiring diagram
