FD-MS13R

FD-MS13R

FD-MS13R series magnetic switches are suitable for almost all T cylinder grooves.
Type of sample：FD-MS13RS2.*

For detailed product selection, please contact us Return
Product features Technical data Shape & Wiring Downloads Accessories
Function & Features

Suitable for almost all T cylinder grooves

Standard rod cylinder, ISO meter cylinder, standard round cylinder, using fixture

SPST normally open type

Nodal reed tube type

Install directly in groove without clamp

Cable, connector, quick plug type optional

High positioning accuracy, strong anti-interference ability

Nimble

Basic parameters
Switching LogicSPST normally open type
Induction switch typeWith nodal reed tube type
indicator lampRed LED
Sensitivity of induction35…45 gauss
Maximum switching frequency200Hz
Protection CircuitWithout
Electrical parameters
Power supply5…240V DC/AC
Switching current100mA Max
Maximum contact capacity10W Max
Internal consumption currentWithout
The residual pressure drop2.5V Max@100mA DC
leakage currentWithout
Mechanical parameters
CableΦ3.3，2C gray oil resistant PVC
Impact resistance30G
Vibration9G
Environmental conditions
Operating temperature﹣10…70℃
Protection classIP67

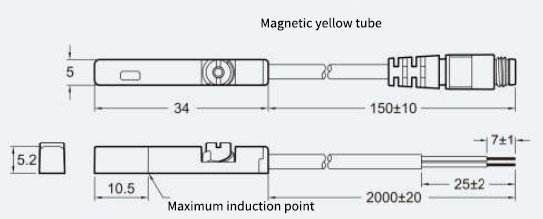

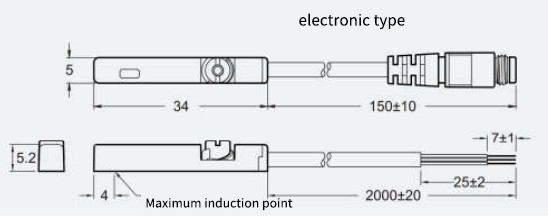

Overall dimensions











Wiring diagram
