FD-S400 scanning hot metal detector is specially used for hot metal detection above 300℃.It is often used to detect the position of the head and tail of hot metal in hot strip rolling mill, the head and tail of hot metal in bar and profile, and the hot metal edge detection is very demanding occasions.
Type of sample：FD-S400-R1C1.*
Using the latest microprocessor technology, robust structural design
Electronic scanning is used instead of rotating prism
Accurate and reliable position detection for hot metals reaching and exceeding 300℃
Adopting signal comparison technology to remove background infrared noise interference
The measurement is not affected by local heat sources in the field of view
Measurement is not affected by lens dust and field moisture
Rod LED light emitting tube is used to display the position of the measured object
The response time is 1ms and in 1...250ms range digital adjustable
Instrument power-on self-test or remote control self-test
Relay output, photoelectric isolation output, transistor output PNP/NPN both
Ac AC80... 240V and DC24V power supply ports are optional

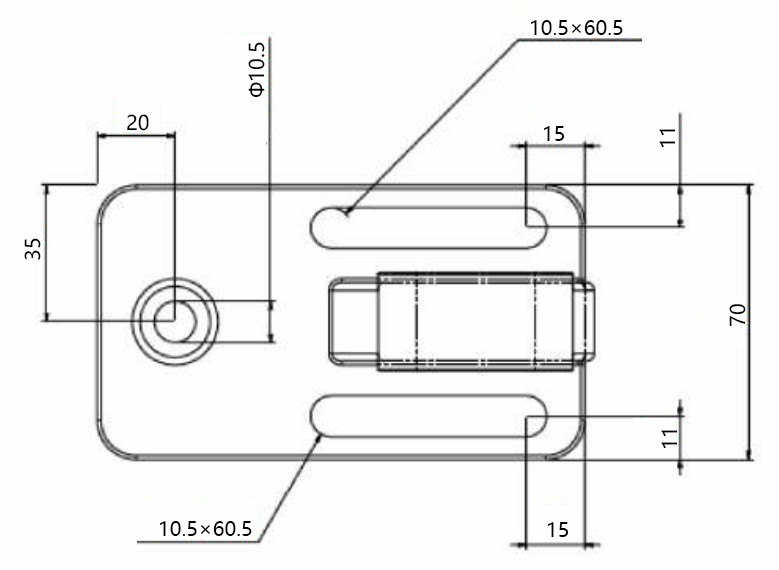

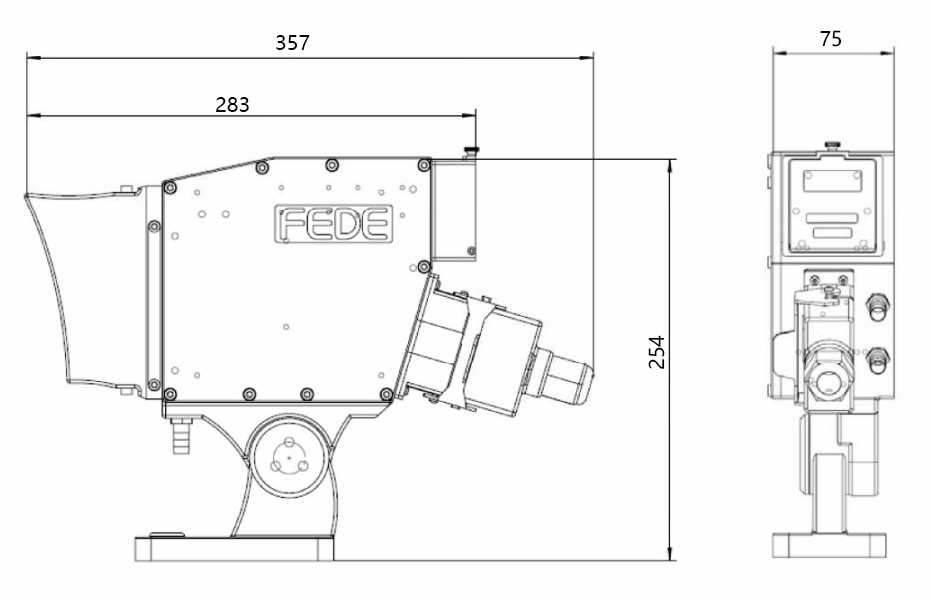

Overall dimensions

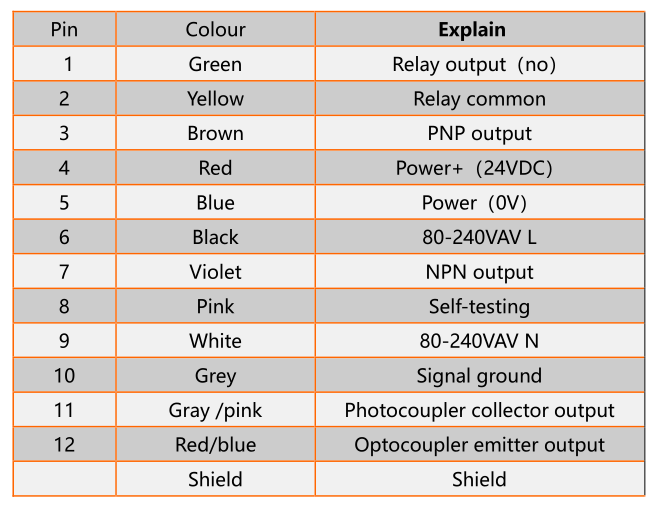

Wiring diagram
