FD-L50P looper scanner is designed for looper control, wire positioning, etc.Commonly used for looping control, hot rolled bar and wire positioning, hot rolled profile edge detection and positioning, hot object edge detection and centering control.
Type of sample：FD-L50P-L3C1.*
Can measure the sleeve size and shape of rod and wire
Analog output product location
Switching output whether there is a signal product
Dc DC24V power supply port is optional
Adapt to dusty, steam and other harsh environment
Using the latest microprocessor technology, robust structural design
Electronic scanning is used instead of rotating prism
The measurement is not affected by local heat sources in the field of view
The response time is 2ms and in 1...250ms range digital adjustable
Instrument power-on self-test or manual self-test
Relay output, photoelectric isolation output, transistor output PNP/NPN both
IP66 aluminum case, water or air cooling

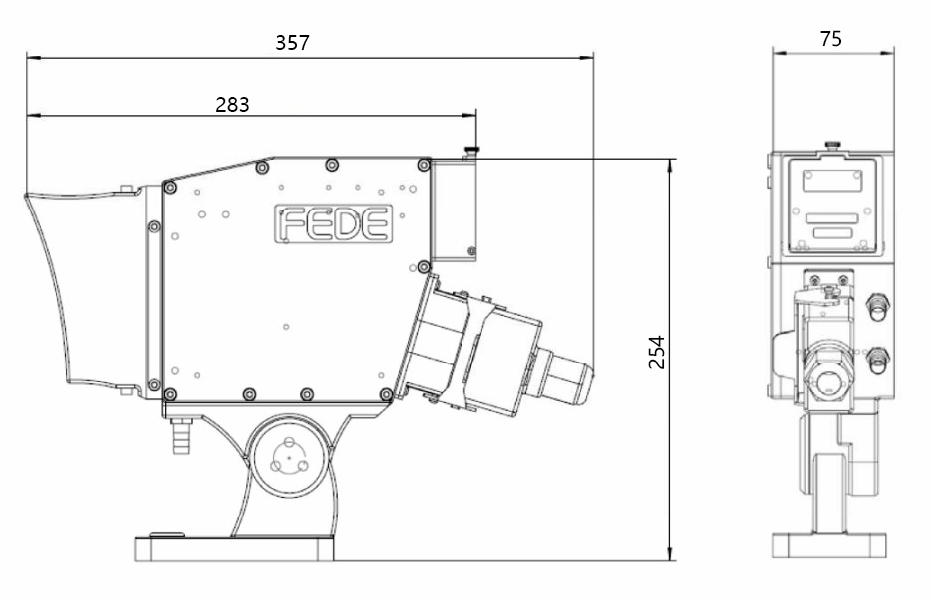

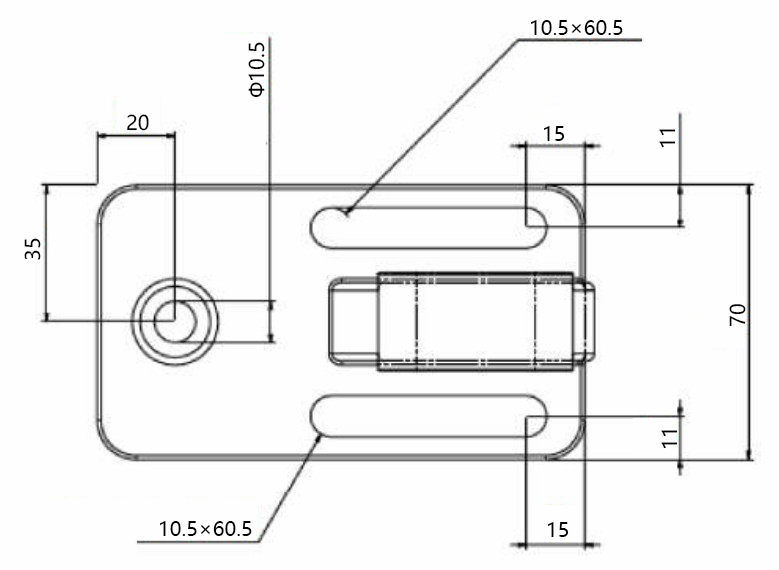

Overall dimensions

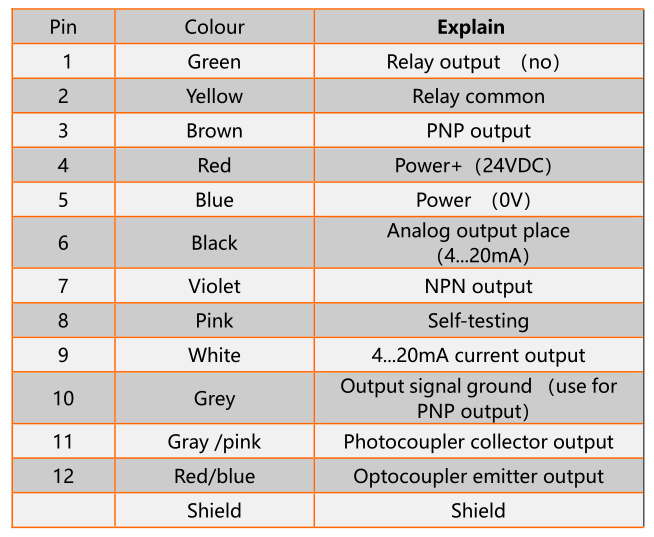

Wiring diagram
