M18 series DC3 wire proximity switches are widely used in metallurgy, packaging, woodworking, machinery manufacturing, etc industry, the minimum sensing distance is 5mm.
Type of sample 1: PR00.05-M18P10S2-Y.*
Type of sample 2: PR01.16-M18N10S2-YE.*
Cylindrical appearance with diameter M18
Stainless steel / chrome plated brass housing
Sensing distance flush 5...12mm, non flush 8...20mm
With 360 °visible signal output indicator
Short circuit protection function, reverse power connection protection
The signal output is PNP or NPN
Special type for food industry with stainless steel shell is optional
Flexible configuration, cable or connector output
Optional short type, extra short type
Through up to 1 million life detection tests
All components and circuits have been tested in harsh environment and complex electromagnetic environment
Overall dimensions
Flush mounting standard type
Non flush mounting standard type

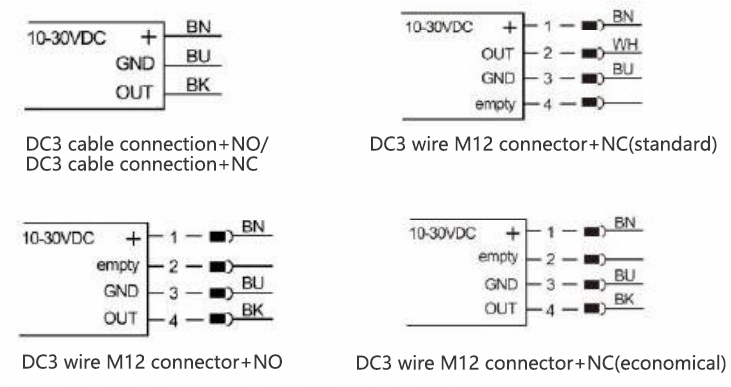

Wiring diagram
