M18 series all stainless steel DC3 wire proximity switch is generally used in food, sanitation, metallurgy, casting, engineering machinery, etc for industries with special requirements, the minimum sensing distance is 5mm.
Type of sample 1: PR00.05-M18P10S2-S.*
Type of sample 2: PR01.08-M18P10S2-SE.*
Cylindrical appearance with diameter M18
DC3 wire, shell stainless steel, detection surface stainless steel or PA12
Sensing distance flush 5...10mm, non flush 8...20mm
With 360 °visible signal output indicator
Short circuit protection function, reverse power connection protection
The signal output is PNP or NPN
Available in conventional and ultra short sizes
Flexible configuration, cable or connector output
Through up to 1 million life detection tests
All components and circuits have been tested in harsh environment and complex electromagnetic environment
Overall dimensions
Flush mounting standard type
Non flush mounting standard type

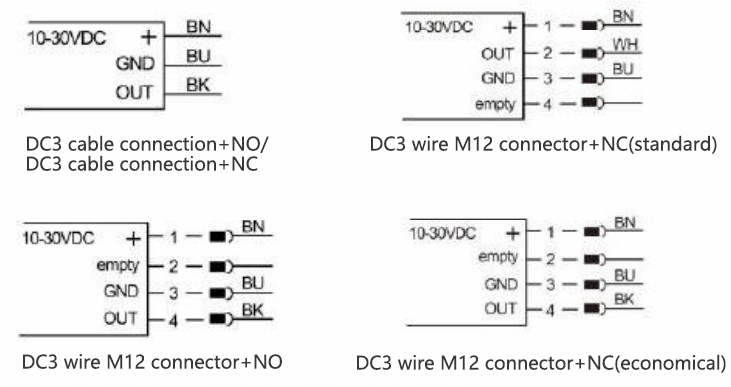

Wiring diagram
