M18 series anti magnetic and anti welding DC3 wire proximity switches are used in scenes with strong magnetic interference,such as welding occasions, electromagnet heating and other industries.
Type of sample : PR00.10-M18P10S2-C.*
Cylindrical appearance with diameter M18
DC3 wire, all stainless steel or Teflon brass shell
Sensing distance flush 8...12mm, non flush 16...20mm
With 360 °visible signal output indicator
Short circuit protection function, reverse power connection protection
The signal output is PNP or NPN
Flexible configuration, cable or connector output
Through up to 1 million life detection tests
All components and circuits have been tested in harsh environment and complex electromagnetic environment

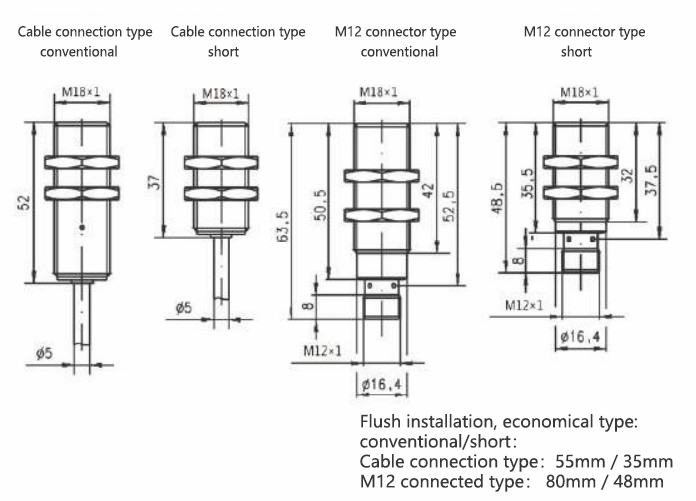

Overall dimensions
Flush mounting standard type
Non flush mounting standard type

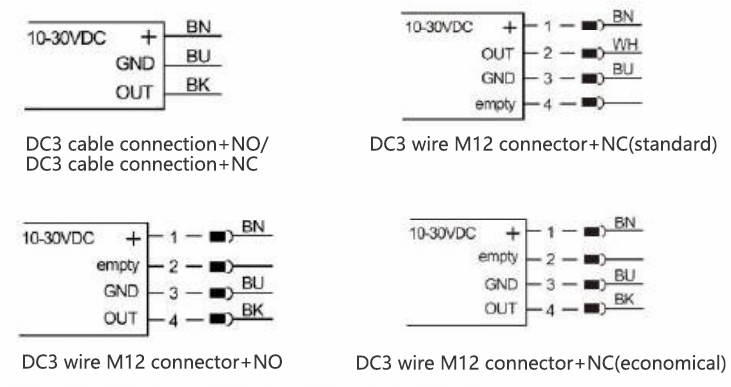

Wiring diagram
