M18 series anti magnetic and anti welding DC2 wire proximity switches are used in scenes with strong magnetic interference,such as welding occasions, electromagnet heating and other industries.
Type of sample : PR01.16-M18D10S2-CE.*
Cylindrical appearance with diameter M18
DC2 wire, Teflon brass housing
The sensing distance is 8mm flush and 16mm non flush
With 360 °visible signal output indicator
Short circuit protection function, reverse power connection protection
The signal output is DC non polarity
Flexible configuration, cable or connector output
Through up to 1 million life detection tests
All components and circuits have been tested in harsh environment and complex electromagnetic environment
Overall dimensions
Flush mounting standard type
Non flush mounting standard type

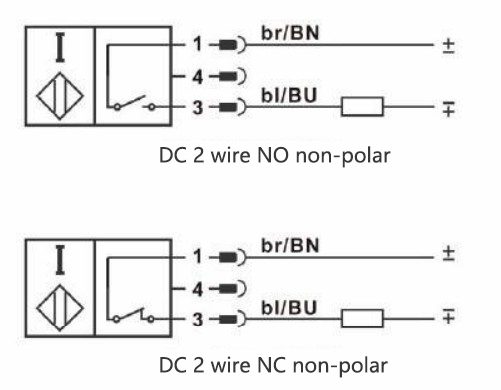

Wiring diagram
