M18 series capacitive proximity switches are used in the scene of detecting non-metallic objects.
Type of sample 1: PR10.08-M18A10S2-YF.*
Type of sample 2: PR11.10-M18A11S2S-RG.*
Cylindrical appearance with diameter M18
AC2 wire, chrome plated brass or pbtp housing
Sensing distance: 8mm flush, 10 non flush 15mm
With 360 °visible signal output indicator
Short circuit protection function, reverse power connection protection
Signal output AC non polarity
Flexible configuration, cable or connector output
Through up to 1 million life detection tests
All components and circuits have been tested in harsh environment and complex electromagnetic environment
Overall dimensions
Flush mounting standard type
Non flush mounting standard type

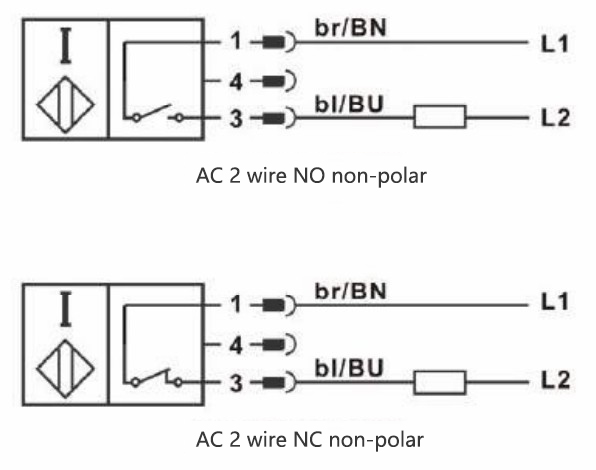

Wiring diagram
