M30 series AC/DC2 wire proximity switches are used in metallurgy, packaging, woodworking, machinery manufacturing, etc industry, the minimum sensing distance is 10mm.
Type of sample 1: PR00.10-M30C10S2-Y.*
Type of sample 2: PR01.15-M30C10S2-YE.*
Cylindrical appearance with diameter M30
Stainless steel / chrome plated brass housing
The sensing distance is 10mm flush and 15mm non flush
With 360 ° visible signal output indicator
Short circuit protection function, reverse power connection protection
The signal output is non-polar
Flexible configuration, cable or connector output
Through up to 1 million life detection tests
All components and circuits have been tested in harsh environment and complex electromagnetic environment
Overall dimensions
Flush mounting standard type
Non flush mounting standard type

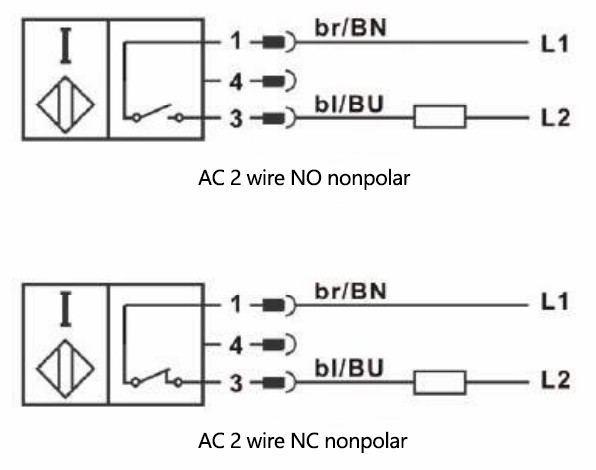

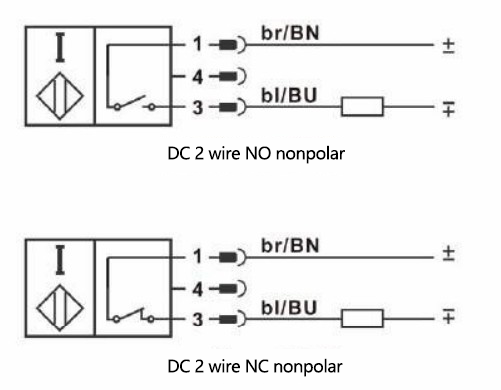

Wiring diagram
