M30 series analog proximity switch is universal and strong. It is used to measure the distance change.
Type of sample 1: PR00.20-M30H13S2-Y.*
Type of sample 2: PR01.15-M30H13S2-YE.*
Cylindrical appearance with diameter M30
Chrome plated brass housing
Sensing distance flush 0...20mm, non flush 0...40mm
With 360 °visible signal output indicator
Short circuit protection function, reverse power connection protection
The signal output is 4...20mA or 0...10VDC
Flexible configuration, cable or connector output
Through up to 1 million life detection tests
All components and circuits have been tested in harsh environment and complex electromagnetic environment
Overall dimensions

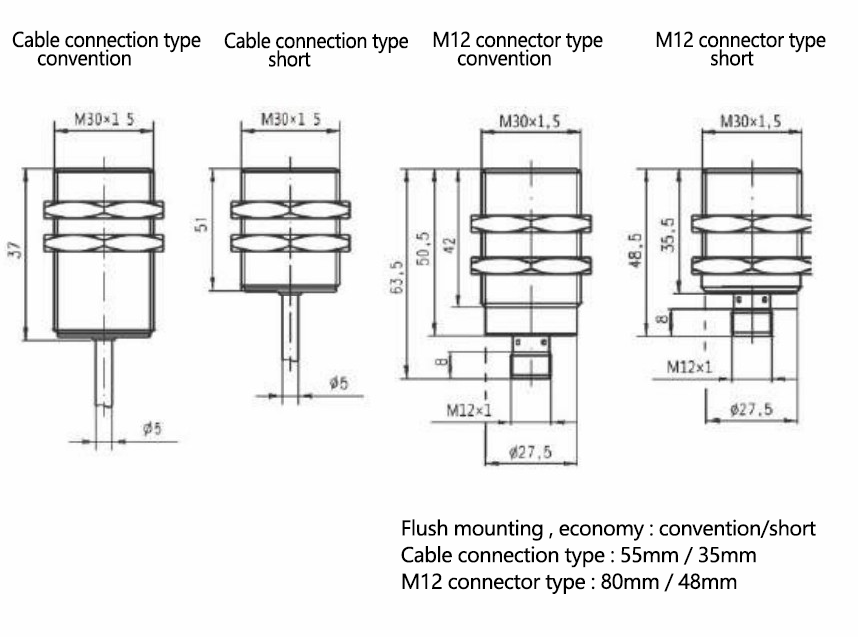

Flush mounting standard type

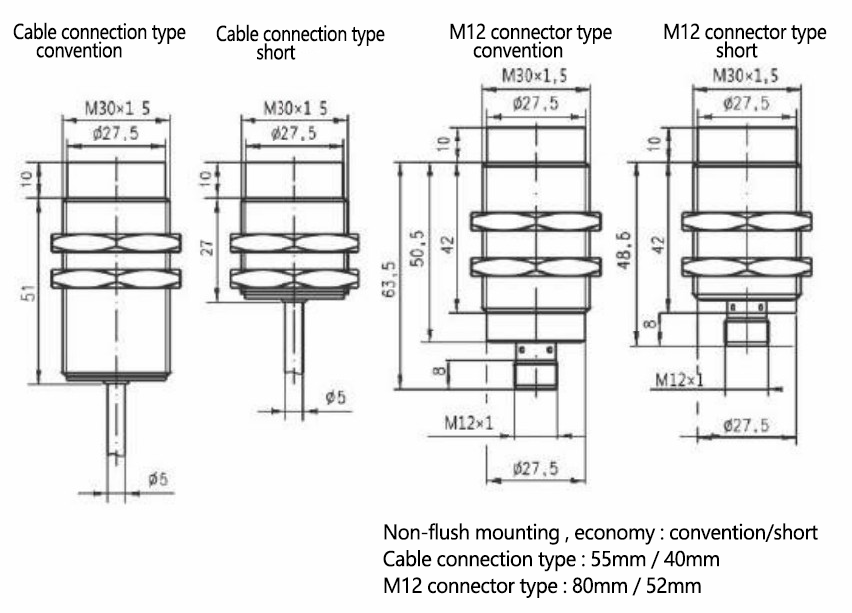

Non flush mounting standard type

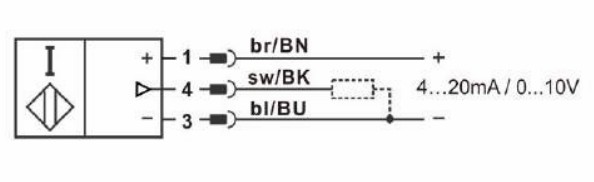

Wiring diagram
