M30 series high temperature resistant proximity switches are used in scenes that need to withstand high ambient temperature,such as metallurgy, non-ferrous metals, casting, glass, machining, etc. The minimum sensing distance is 10mm.
Type of sample : PR00.10-M30P10S2-Y.120.*
Cylindrical appearance with diameter M30
DC3 wire, stainless steel or teflon brass shell
The sensing distance is 10mm flush and 15mm non flush
With 360 ° visible signal output indicator
Short circuit protection function, reverse power connection protection
The signal output is PNP or NPN
Flexible configuration, high temperature resistant cable output
Through up to 1 million life detection tests
All components and circuits have been tested in harsh environment and complex electromagnetic environment
Overall dimensions
Flush mounting standard type
Non flush mounting standard type

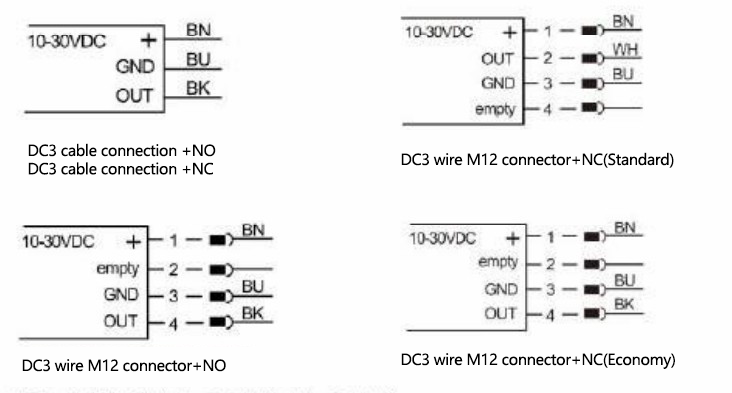

Wiring diagram
