PQ03B

PQ03B small square photoelectric switch, used in general industries, such as packaging, logistics, machinery manufacturing and other fields.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Universal small square shape design

Contra-reflection, specular reflection, diffuse reflection, background suppression type optional

The response speed is less than 1ms

4 lines to connect

Economical and applicable to all industries

Sensitivity can be adjusted

Strong anti-interference ability

Basic parameters

Detection distanceCorrelatio：5m/15m
Specular type：2m/4m
Diffuse reflection：100mm/350mm/800mm
Background suppression：10…200mm

Response time≤1ms

light source in diameterAt 200mm Φ6mm circular light spot
At 100mm Φ5mm circular light spot

Black and white period of poorAt 200mm，2.5%F.S，4…5mm
At 100mm，0%F.S,＜1mm, black and white
isometric

Should be sent (White background detects white objects) At 200mm，2mm
At 100mm，0.5mm

Electrical parameters

Power supply12…24VDC

Residual voltage≤15%DC

Open current≤30mA

Protection current1.2 times

IOUT≤100mA

Singal voltage≤2V

Output modeNPN / PNP，NO / NC

Capacity load≤0.2μF

Mechanical parameters

MountM3 nut fixed

Connection type4 wire

Overall dimensions32.1×18×12.8mm（L×W×H）

Shell materialPC plastic

Environmental conditions

Operating temperature﹣25…+55℃

Storage temperature﹣30…+70℃

VDE security level Ⅲ

Protection classIP67

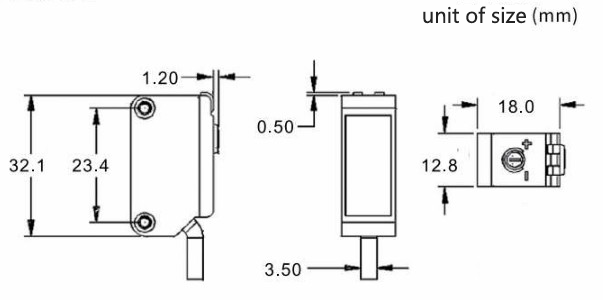

Overall dimensions

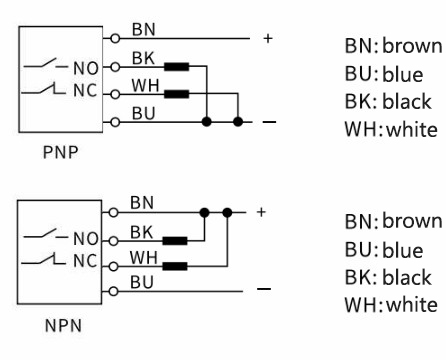

Wiring diagram
