FD100.10B-58X2

FD100.10B-58X2 incremental half-air shaft encoder can be used in servo motor, elevator, industrial robot, industrial automation control production line, etc.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

High performance encoder with general dimensions, outer diameter of 58mm

The output pulse number can reach 4096 when it is normal, higher pulse number can be customized

The signal output mode is push-pull output and RS422

Using glass code plate, can produce higher resolution output pulse

Short circuit protection

Basic parameters

Outside diameter58mm

Diameter of half-air bushing10mm，12mm

Maximum speed of revolution12000 r

Maximum shaft load——

Starting torque＜2Ncm

Moment of inertia＜25gcm2

Electrical parameters

Power supply5…30VDC；5VDC

Output singal5…30VDC：Push-pull；5VDC：RS422

Working currentPush-pull：30mA；RS422：20mA

Resolution100，300，360，500，512，600，1000，1024，
1200，1500，2000，2048，2500，3600，
4096

Output frequencyMax 300KHz

Electrical interfaceCable connection：8×0.08mm²，0.5m
Connection：M23，12pin（specific）

Mechanical parameters

Flange type——

MaterialsShell：AL；flange：AL；Axis guide: stainless steel

WeightAbout 300g

Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ

Surge suppressionIEC 68-2-27；200m/s² 3ms

Environmental conditions

Operating temperature﹣20…+80℃ (General）
﹣40…+80℃ (Specific）（High temperature
type can be customized）

Storge temperature﹣40…+85℃

Protection classIP54 / IP67

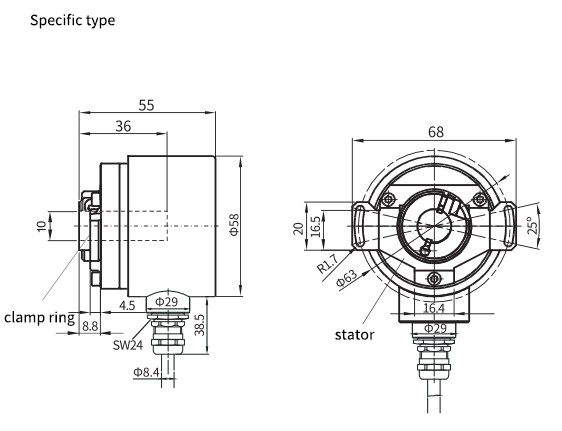

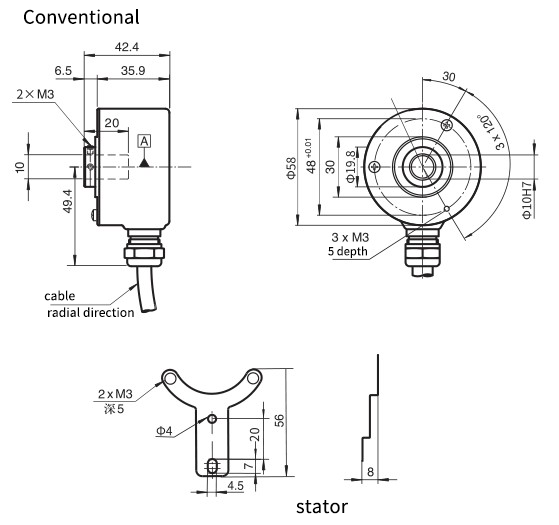

Overall dimensions

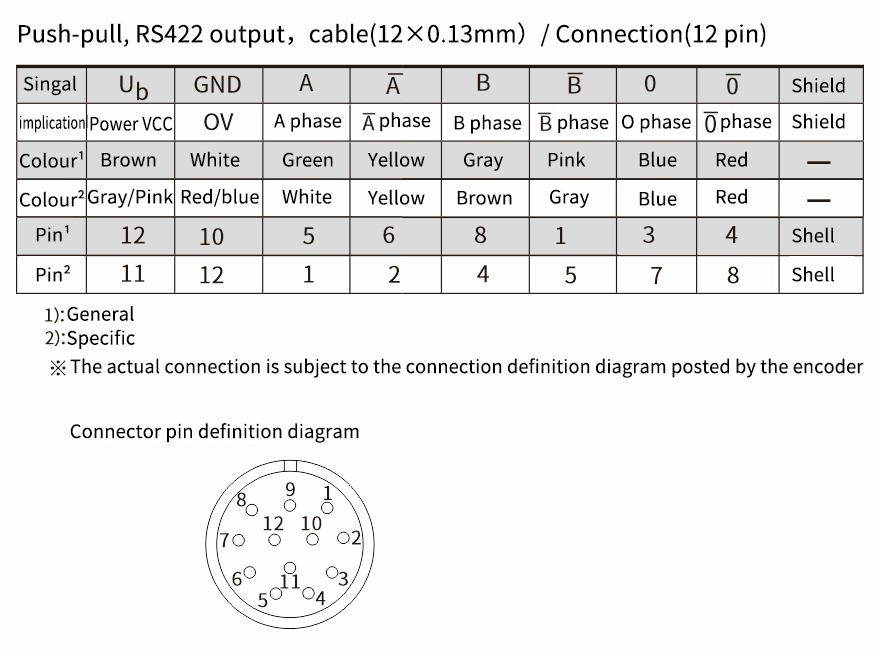

Wiring diagram
