FD100.20-58X00

FD100.20-58X00 absolute value solid shaft encoder can be used in servo motor field, elevator field, industrial robot field, industrial automation control production line field, etc.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Absolute value solid shaft encoder, single turn and multi turn options

High performance encoder with general overall dimensions, with outer diameter of 58mm

Signal output mode is SSI output

Resolution up to 30 bits

Short circuit protection, overvoltage protection

Basic parameters

Outside diameter58mm

Shaft diameter6mm，10mm，12mm

Maximum speed of revolution12000 r

Maximum shaft loadAxial/radial：40N/110N

Starting torque＜3Ncm

Moment of inertia＜30gcm2

Electrical parameters

Power supply5…30VDC

Output singalSSI

Output typeRS422

Output codeBinary/Gray code

Working current＜40mA

Max resolutionSingle turn 15 bits（32768）
Number of turns 15 bits（32768）

Output frequency0.1…2MBit/s

Count directionThe counting direction can be controlled by
the input signal

Zero bit presetZero bits can be preset through the input signal

Electrical interfaceCable connector：12×0.14mm²
Connector：M23，12 pin

Mechanical parameters

Flange typeSpannflansche / Synchronous flange

MaterialsShell：AL；Flange：AL；Shaft: stainless steel

WeightAbout 450g

Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ

Surge suppressionIEC 68-2-27；200m/s² 3ms

Environmental conditions

Operating temperature﹣40…+80℃

Storge temperature﹣40…+85℃

Protection classIP65 / IP67

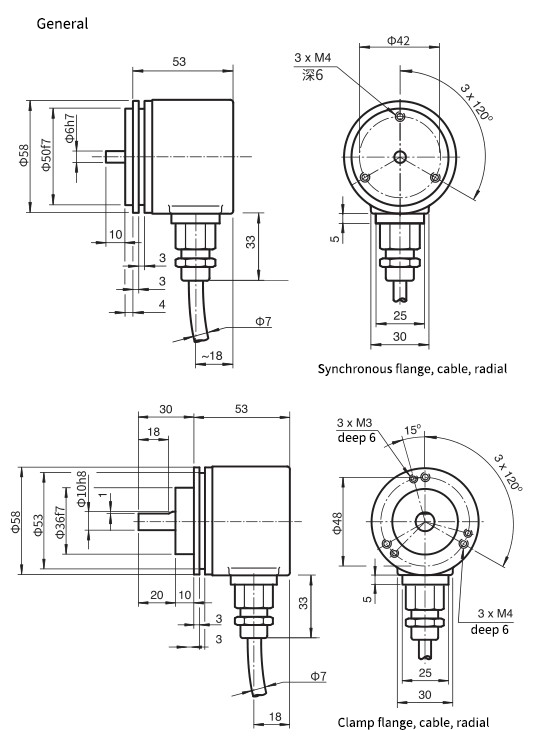

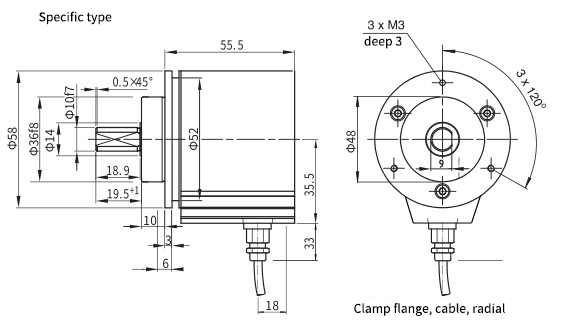

Overall dimensions

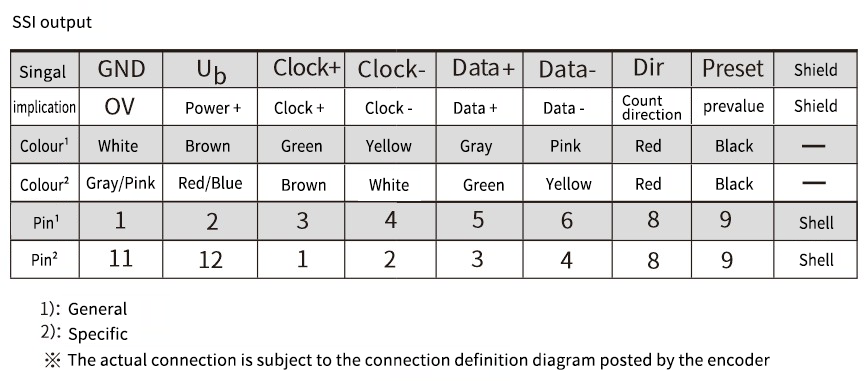

Wiring diagram
