FD100.20-8061X01

FD100.20-8061X01 absolute value hollow shaft encoder can be used in servo motor field, elevator field, industrial robot field, industrial automation control production line field, etc.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Absolute value hollow shaft encoder, single turn and multi turn options

High performance encoder with square overall dimension, with outer diameter of 80mm × 61mm (high × thick)

Signal output mode is SSI output

Resolution up to 30 bits

Short circuit protection, overvoltage protection

Basic parameters

Outside diameter80×61mm

Shaft sleeve diameter16mm，20mm，24mm，25mm

Maximum speed of revolution3000 r

Maximum shaft load——

Starting torque＜8Ncm

Moment of inertia＜60gcm2

Electrical parameters

Power supply5…30VDC

Output singalSSI

Output typeRS422

Output codeBinary/Gray code

Working current＜40mA

Max resolutionSingle turn 13 bits（8192）
Number of turns 17 bits（131072）

Output frequency0.1…2MBit/s

Count directionThe direction of counting can be controlled by
input signal

Zero bit presetZero can be preset through the input signal

Electrical interfaceCable connector：12×0.14mm²
Connector：M23，12 pin

Mechanical parameters

Flange type——

MaterialsShell：AL；Flange：AL；axle sleeve: stainless steel

WeightAbout 1300g

Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ

Surge suppressionIEC 68-2-27；200m/s² 3ms

Environmental conditions

Operating temperature﹣40…+85℃

Storge temperature﹣40…+85℃

Protection classIP65

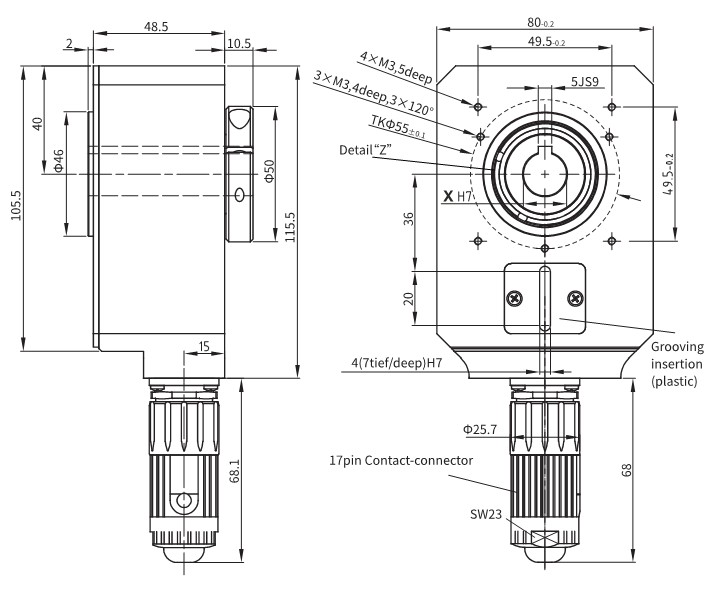

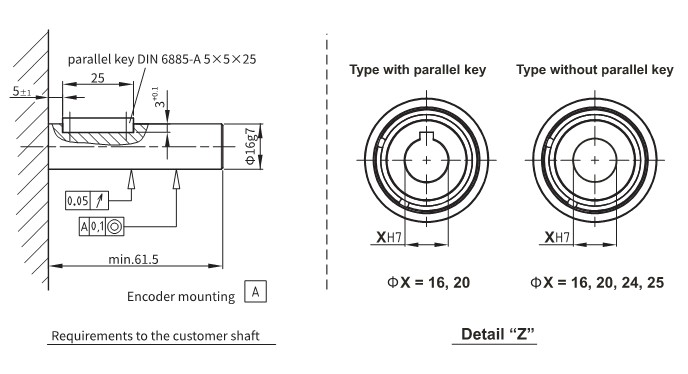

Overall dimensions

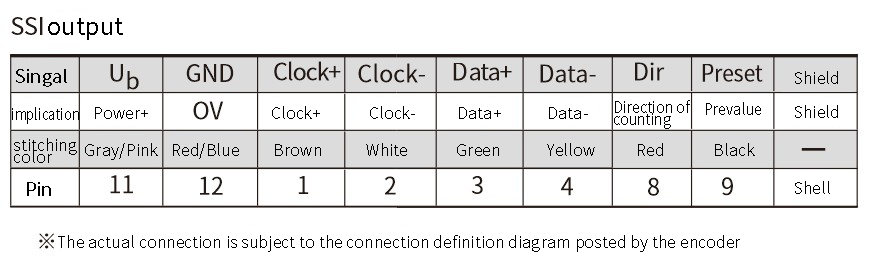

Wiring diagram

FD100.20-8061X01接线图-英 .png
