FD100.20-110X01

FD100.20-110X01 absolute value hollow shaft encoder can be used in servo motor field, elevator field, industrial robot field, industrial automation control production line field, etc.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Absolute value hollow shaft encoder, single turn and multi turn options

High performance encoder with large overall dimensions, with an outer diameter of 110mm

Signal output mode is SSI output

Bushing diameter size 25...50mm

Resolution up to 30 bits

Short circuit protection, overvoltage protection

Basic parameters

Outside diameter110mm

Shaft sleeve diameter25…50mm

Maximum speed of revolution2000 r

Maximum shaft load——

Starting torque＜8Ncm

Moment of inertia＜500gcm2

Electrical parameters

Power supply5…30VDC

Output singalSSI

Output typeRS422

Output codeBinary/Gray code

Working current＜40mA

Max resolutionSingle turn 15 bits（32768）
Number of turns 15 bits（32768）

Output frequency0.1…2MBit/s

Count directionThe direction of counting can be controlled by
input signal

Zero bit presetZero can be preset through the input signal

Electrical interfaceCable connector：12×0.14mm²
Connector：M23，12 pin

Mechanical parameters

Flange type——

MaterialsShell：AL；Flange：AL；axle sleeve: stainless steel

WeightAbout 1700g

Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ

Surge suppressionIEC 68-2-27；200m/s² 3ms

Environmental conditions

Operating temperature﹣40…+85℃

Storge temperature﹣40…+85℃

Protection classIP65

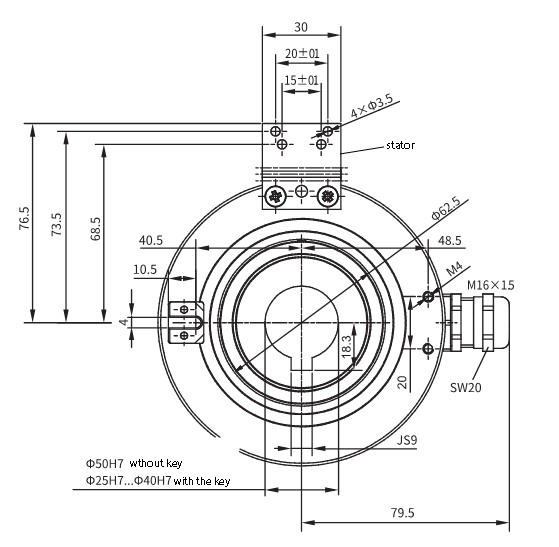

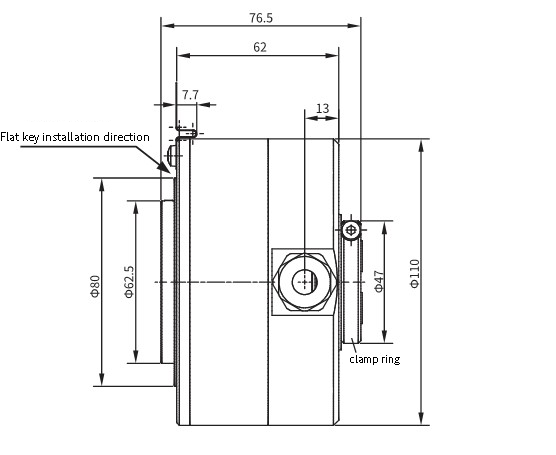

Overall dimensions

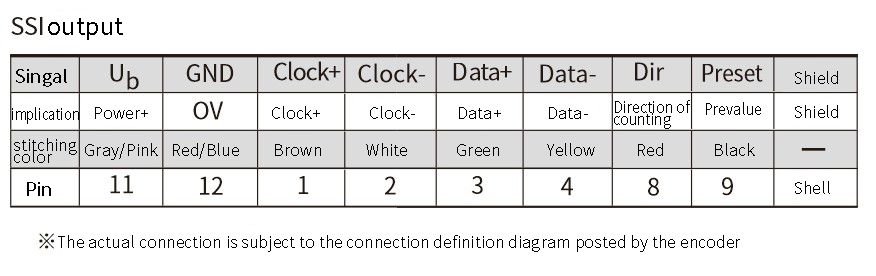

Wiring diagram

FD100.20-110X01接线图-英 .png
