FD100.20-36X02

FD100.20-36X02 absolute value half empty shaft encoder can be used in servo motor field, elevator field, industrial robot field, industrial automation control production line field, etc.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Absolute value half empty shaft encoder, single turn and multi turn options

Compact high-performance encoder with outer diameter of 36mm

Signal output mode is SSI output

The diameter of half empty shaft sleeve is 6mm

Resolution up to 25 bits

Short circuit protection, overvoltage protection

Basic parameters

Outside diameter36mm

Diameter of half-empty bushing6mm

Maximum speed of revolution12000 r

Maximum shaft load——

Starting torque＜3Ncm

Moment of inertia＜30gcm2

Electrical parameters

Power supply5…30VDC

Output singalSSI

Output typeRS422

Output codeBinary/Gray code

Working current＜40mA

Max resolutionSingle turn 13 bits（8192）
Number of turns 12 bits（4096）

Output frequency0.1…2MBit/s

Count directionThe direction of counting can be controlled by
input signal

Zero bit presetZero can be preset through the input signal

Electrical interfaceCable connector：8×0.14mm²
Connector：M12，8 pin

Mechanical parameters

Flange type——

MaterialsShell：AL；Flange：AL；axle sleeve: stainless steel

WeightAbout 150g

Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ

Surge suppressionIEC 68-2-27；200m/s² 3ms

Environmental conditions

Operating temperature﹣30…+70℃

Storge temperature﹣40…+85℃

Protection classIP67

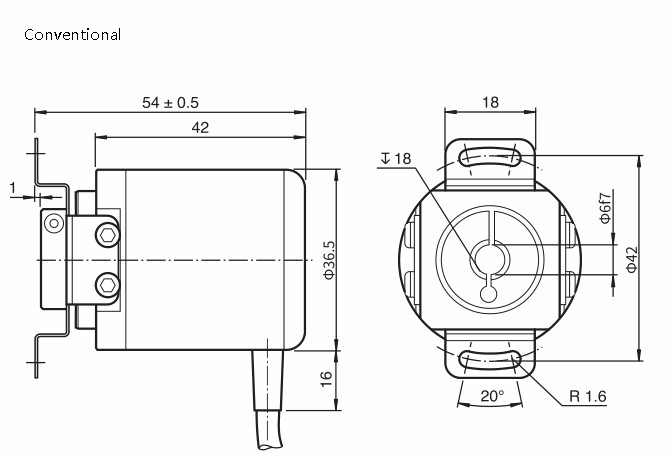

Overall dimensions

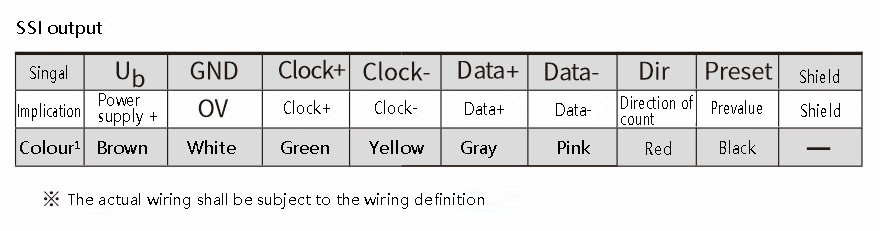

Wiring diagram
