FD100.20-58X10

FD100.20-58X10 absolute value solid shaft encoder can be used in servo motor field, elevator field, industrial robot field, industrial automation control production line field, etc.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Absolute value solid shaft encoder, single turn and multi turn optional

High-performance encoder with universal overall dimensions, outer diameter of 58mm

The signal output mode is PROFIBUS output

Resolution up to 32 bits

Short circuit protection, overvoltage protection

Basic parameters

Outside diameter58mm

Diameter of half-empty bushing6mm，10mm，12mm

Maximum speed of revolution12000 r

Maximum shaft loadAxial/radial：40N/110N

Starting torque＜3Ncm

Moment of inertia＜30gcm2

Electrical parameters

Power supply10…30VDC

Output singalProfibus

Output typeRS485

Output codeBinary/Gray code

Working current＜40mA

Max resolutionSingle turn 16 bits（65536）
Number of turns 16 bits（65536）

Output frequency9.6KBit…12MBit/s

Count directionProgrammable setting

Zero bit presetProgrammable setting

Electrical interfaceWiring type: special Profibus cable and 2×
0.3mm² power cord
Connector: M12 (5 pin) +M12 (5 hole)+M8(4 pin)

Mechanical parameters

Flange typeClamping flange/synchronous flange

MaterialsShell：AL；Flange：AL；axle: stainless steel

WeightAbout 520g

Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ

Surge suppressionIEC 68-2-27；200m/s² 3ms

Environmental conditions

Operating temperature﹣40…+80℃

Storge temperature﹣40…+85℃

Protection classIP65 / IP67

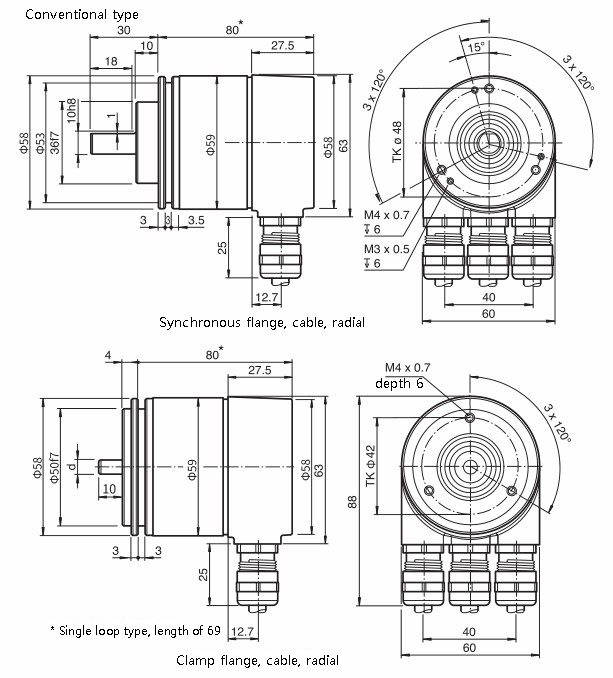

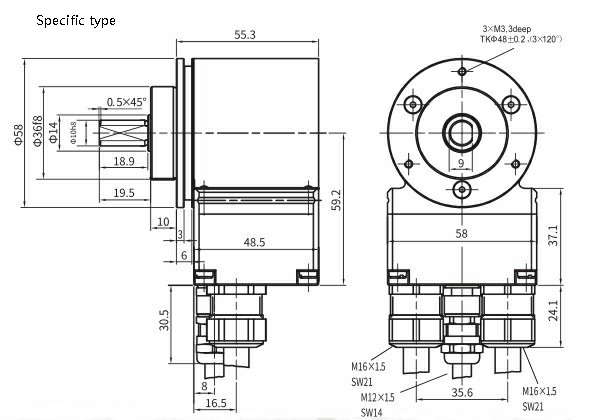

Overall dimensions

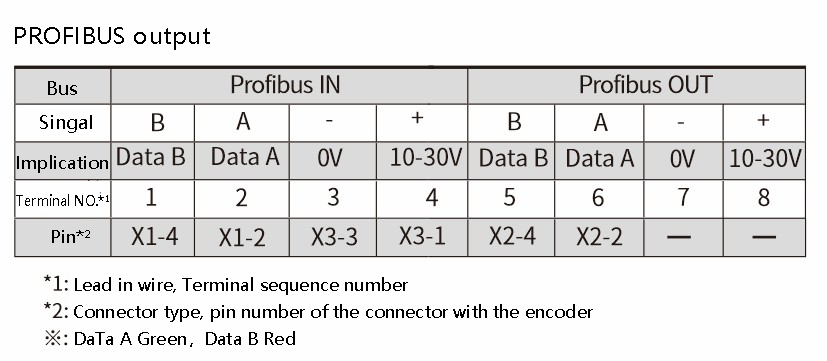

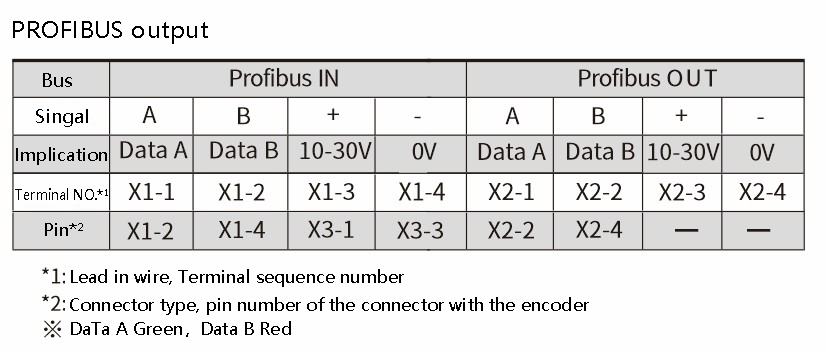

Wiring diagram
