FD100.20-58X11

FD100.20-58X11 absolute value hollow shaft encoder can be used in servo motor field, elevator field, industrial robot field, industrial automation control production line field, etc.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Absolute value hollow shaft encoder, single and multi turn optional

High performance encoder with general dimensions, outer diameter of 58mm

Resolution up to 32 bits

Short circuit protection, overvoltage protection

Basic parameters

Outside diameter58mm

Shaft sleeve diameter6mm，8mm，10mm，12mm，15mm

Maximum speed of revolution12000 r

Maximum shaft load——

Starting torque＜3Ncm

Moment of inertia＜30gcm2

Electrical parameters

Power supply10…30VDC

Output singalProfibus

Output typeRS485

Output codeBinary/Gray code

Working current＜40mA

Max resolutionSingle turn 15 bits（32768）
Number of turns 15 bits（32768）

Output frequency9.6KBit…12MBit/s

Count directionProgrammable setting

Zero bit presetProgrammable setting

Electrical interfaceWiring type: special Profibus cable and 2×0.3
mm² power cord
Connector：M12(5 pin)+M12(5 hole)+M8(4 pin)

Mechanical parameters

Flange type——

MaterialsShell：AL；Flange：AL；axle sleeve: stainless steel

WeightAbout 520g

Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ

Surge suppressionIEC 68-2-27；200m/s² 3ms

Environmental conditions

Operating temperature﹣40…+80℃

Storge temperature﹣40…+85℃

Protection classIP54 / IP65

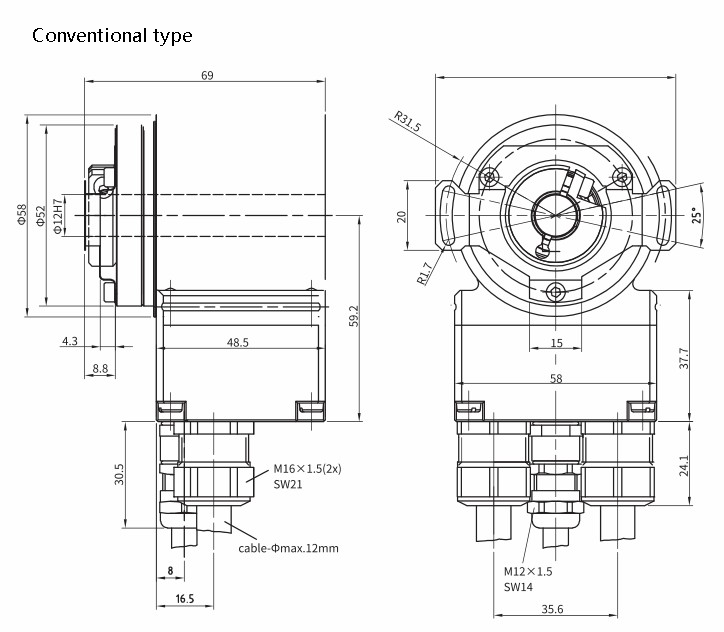

Overall dimensions

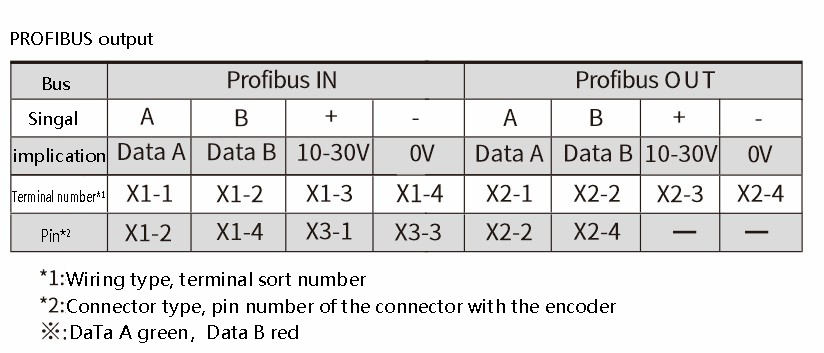

Wiring diagram
