FD100.20-8061X11

FD100.20-8061X11 absolute value hollow shaft encoder can be used in servo motor field, elevator field, industrial robot field, industrial automation control production line field, etc.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Absolute value hollow shaft encoder, single and multi turn optional

High performance encoder with square shape size, size 80×61mm

The signal output mode is PROFIBUS output

Resolution up to 30 bits

Short circuit protection, overvoltage protection

Basic parameters

Outside diameter80mm×61mm

Shaft sleeve diameter16mm，20mm，24mm，25mm

Maximum speed of revolution3000 r

Maximum shaft load——

Starting torque＜8Ncm

Moment of inertia＜60gcm2

Electrical parameters

Power supply10…30VDC

Output singalProfibus

Output typeRS485

Output codeBinary/Gray code

Working current＜40mA

Max resolutionSingle turn 13 bits（8192）
Number of turns 17 bits（131072）

Output frequency9.6KBit…12MBit/s

Count directionProgrammable setting

Zero bit presetProgrammable setting

Electrical interfaceWiring type: special Profibus cable and 2×0.3
mm² power cord
Connector: M12(5 pin)+M12(5 hole)+M8 (4 pin)

Mechanical parameters

Flange type——

MaterialsShell：AL；Flange：AL；axle sleeve: stainless steel

WeightAbout 1300g

Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ

Surge suppressionIEC 68-2-27；200m/s² 3ms

Environmental conditions

Operating temperature﹣40…+85℃

Storge temperature﹣40…+85℃

Protection classIP65

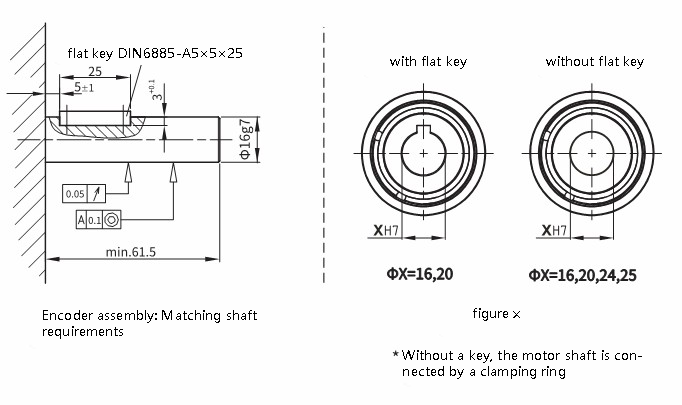

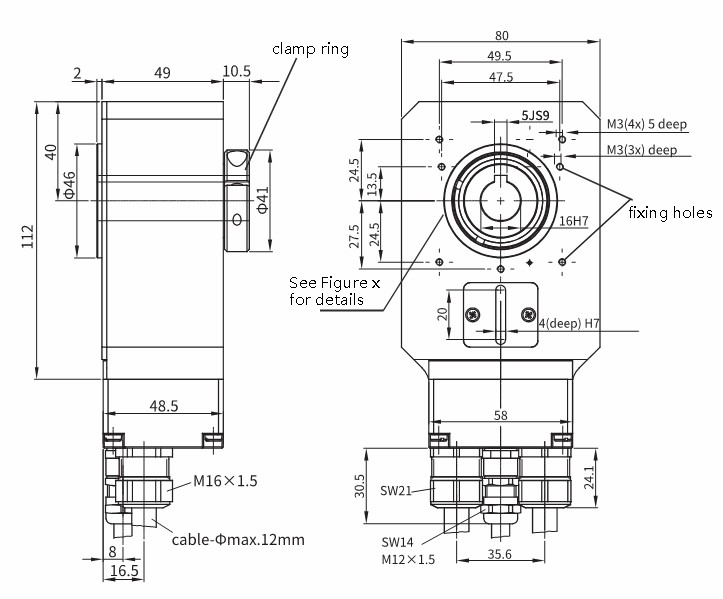

Overall dimensions

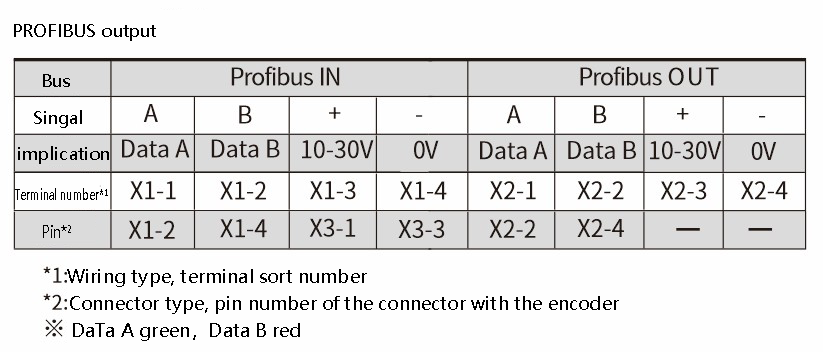

Wiring diagram
