FD100.20-110X11

FD100.20-110X11 absolute value hollow shaft encoder can be used in servo motor field, elevator field, industrial robot field, industrial automation control production line field, etc.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Absolute value hollow shaft encoder, single and multi turn optional

High performance encoder with large shape size, size 110mm

The signal output mode is PROFIBUS output

The diameter of shaft sleeve is 25...50mm

Resolution up to 30 bits

Short circuit protection, overvoltage protection

Basic parameters

Outside diameter110mm

Shaft sleeve diameter25…50mm

Maximum speed of revolution2000 r

Maximum shaft load——

Starting torque＜8Ncm

Moment of inertia＜500gcm2

Electrical parameters

Power supply10…30VDC

Output singalProfibus

Output typeRS485

Output codeBinary/Gray code

Working current＜40mA

Max resolutionSingle turn 15 bits（32768）
Number of turns 15 bits（32768）

Output frequency9.6KBit…12MBit/s

Count directionProgrammable setting

Zero bit presetProgrammable setting

Electrical interfaceWiring type: special Profibus cable and 2×0.3
mm² power cord
Connector: M12(5 pin)+M12(5 hole)+M8(4 pin）

Mechanical parameters

Flange type——

MaterialsShell：AL；Flange：AL；axle sleeve: stainless steel

WeightAbout 1700g

Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ

Surge suppressionIEC 68-2-27；200m/s² 3ms

Environmental conditions

Operating temperature﹣40…+85℃

Storge temperature﹣40…+85℃

Protection classIP65 / IP54

Overall dimensions

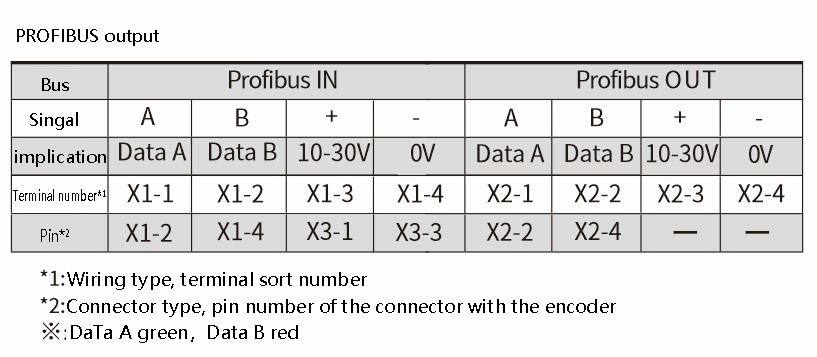

Wiring diagram
