FD-L150T laser ranging sensor is specially designed for fixed or moving objects for distance measurement.
Type of sample：FD-L150T-C1P2M.*
With cooling protective sleeve
Measuring range is wide, the distance from the surface of natural objects can reach 30m, plus the reflector can reach 150m
The use of visible laser beam, easy to aim at the measured object
Real-time display of the current measured distance value
Operating voltage range from 10V... 30V
Programmable switching output and analog output
Alarm distance range can be set
Can adapt to bad working environment
It can measure the position of all kinds of moving objects, especially on the track, such as cranes and rail conveyors
It can measure the length, width, thickness and position of various plates, such as steel plate, medium plate, rubber plate, etc
Can measure various containers, large tanks in bulk solid, liquid, anticorrosive materials, the accurate position of radiation objects

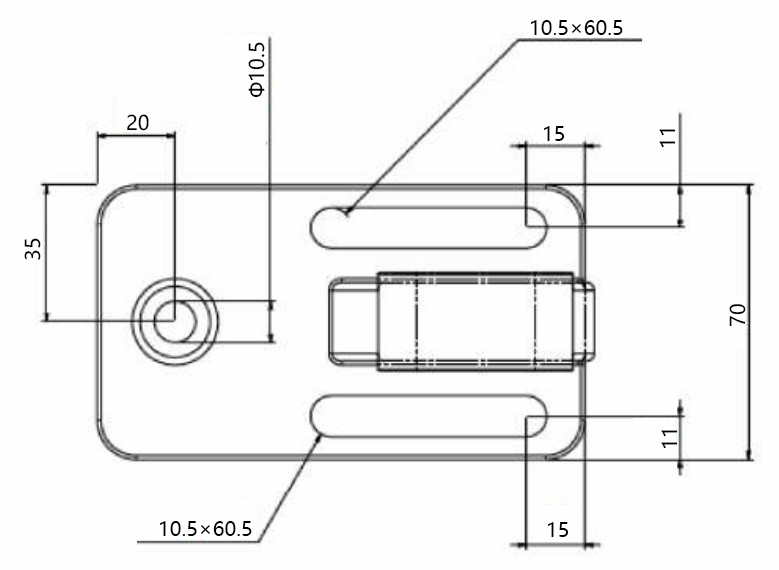

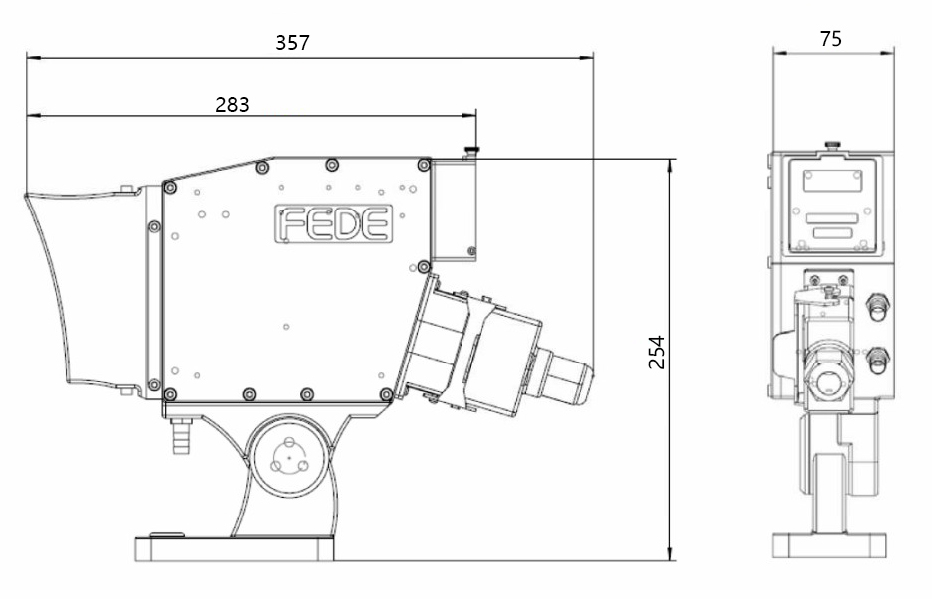

Overall dimensions

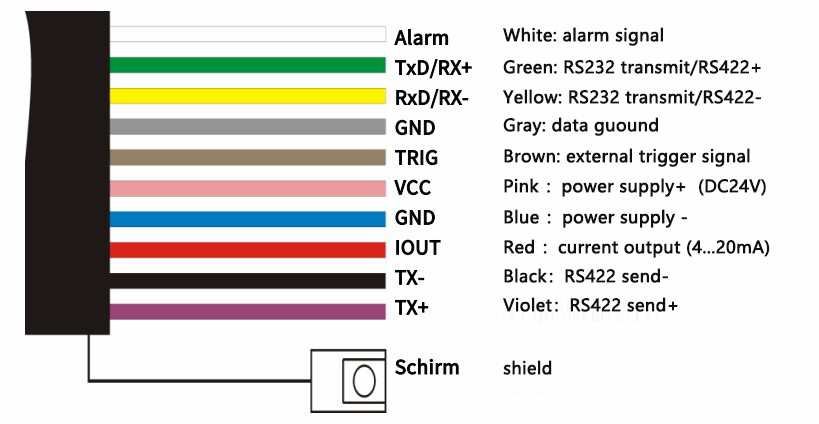

Wiring diagram
