FD100.20-58X21

FD100.20-58X21 absolute value hollow shaft encoder can be used in servo motor field, elevator field, industrial robot field, industrial automation control production line field, etc.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Absolute value hollow shaft encoder, single turn and multi turn options

High performance encoder with general overall dimensions, with outer diameter of 58mm

The signal output mode is CANopen output

Resolution up to 32 bits

Short circuit protection, overvoltage protection

Basic parameters

Outside diameter58mm

Shaft sleeve diameter6mm，8mm，10mm，12mm

Maximum speed of revolution12000 r

Maximum shaft load——

Starting torque＜3Ncm

Moment of inertia＜30gcm2

Electrical parameters

Power supply10…30VDC

Output singalCANopen

Output typeRS485

Output codeBinary/Gray code

Working current＜350mA

Max resolutionSingle turn 15 bits（32768）
Number of turns 15 bits（32768）

Output frequency20KBit…1MBit/s

Count directionProgrammable setting

Zero bit presetProgrammable setting

Electrical interfaceWiring type: special CANopen cable and 2×
0.3mm² power cord
Connector: M12(5 pin) +M12(5 hole) +M8(4 pin)

Mechanical parameters

Flange type——

MaterialsShell：AL；Flange：AL；axle sleeve: stainless steel

WeightAbout 520g

Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ

Surge suppressionIEC 68-2-27；200m/s² 3ms

Environmental conditions

Operating temperature﹣40…+80℃

Storge temperature﹣40…+85℃

Protection classIP54 / IP65

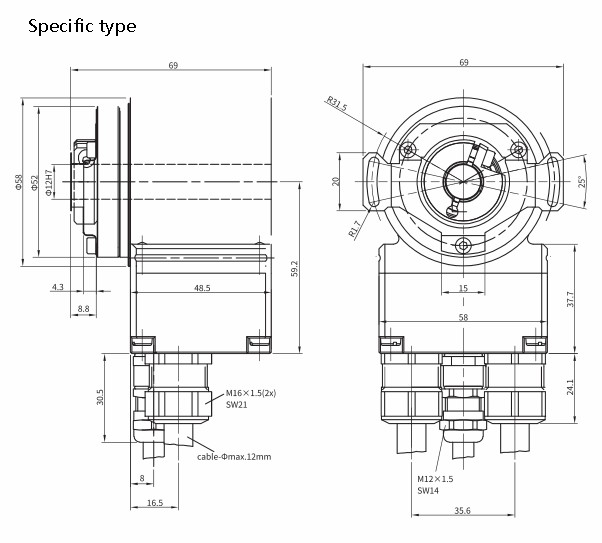

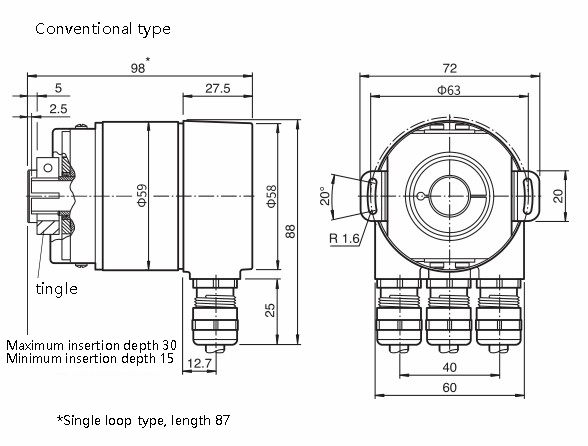

Overall dimensions

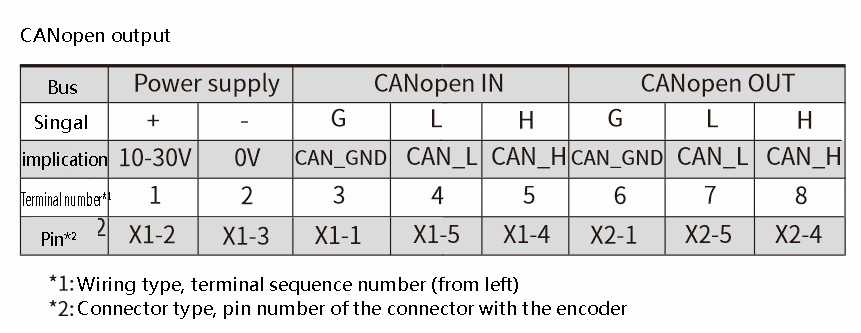

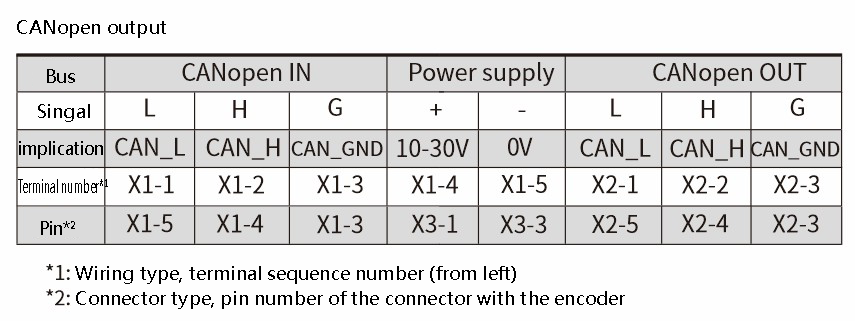

Wiring diagram
