FD100.20-58X32

FD100.20-58X32 absolute value half empty shaft encoder can be used in servo motor field, elevator field, industrial robot field, industrial automation control production line field, etc.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Absolute value half empty shaft encoder, single turn and multi turn options

High performance encoder with general overall dimensions, with outer diameter of 58mm

The signal output mode is ethernet/ip output

Resolution up to 32 bits

Short circuit protection, overvoltage protection

Basic parameters

Outside diameter58mm

Diameter of half-air bushing6mm，10mm，12mm

Maximum speed of revolution12000 r

Maximum shaft load——

Starting torque＜3Ncm

Moment of inertia＜45gcm2

Electrical parameters

Power supply10…30VDC

Output singalEtherNET

Output typeIndustrial Ethernet

Output codeBinary

Working current＜350mA

Max resolutionSingle turn 16 bits（65536）
Number of turns 16 bits（65536）

Output frequency10MBit…100MBit/s

Count directionProgrammable setting

Zero bit presetProgrammable setting

Electrical interfaceWiring type: 5 types of network communication
cables and 2×0.3mm² power cables
Connector:M12(4 hole)+M12(4 hole)+M12(4 pin)

Mechanical parameters

Flange type——

MaterialsShell：AL；Flange：AL；axle sleeve: stainless steel

WeightAbout 460g

Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ

Surge suppressionIEC 68-2-27；200m/s² 3ms

Environmental conditions

Operating temperature﹣40…+80℃

Storge temperature﹣40…+85℃

Protection classIP65 / IP67

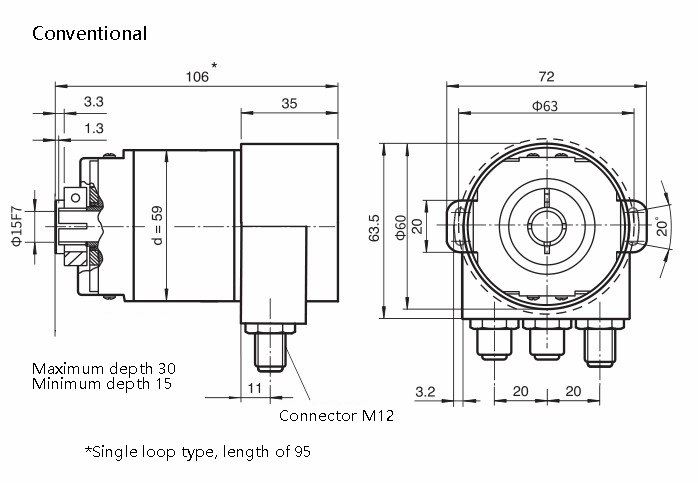

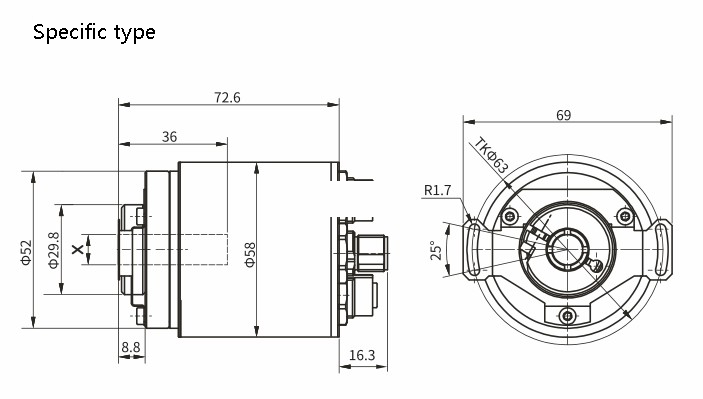

Overall dimensions

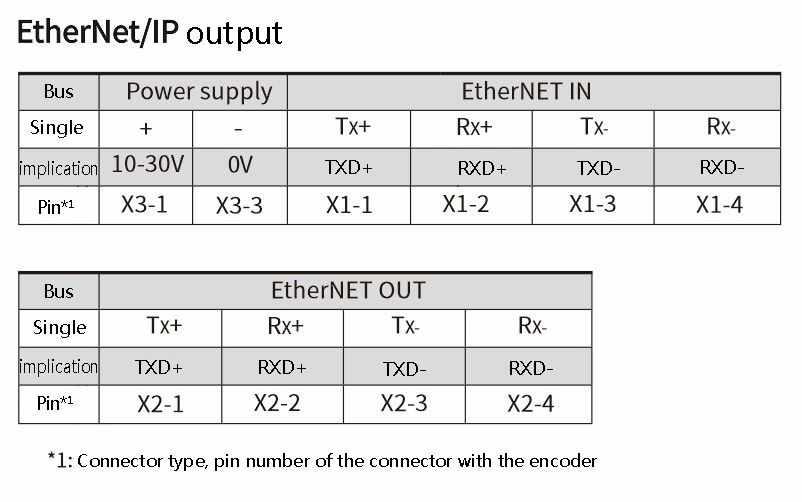

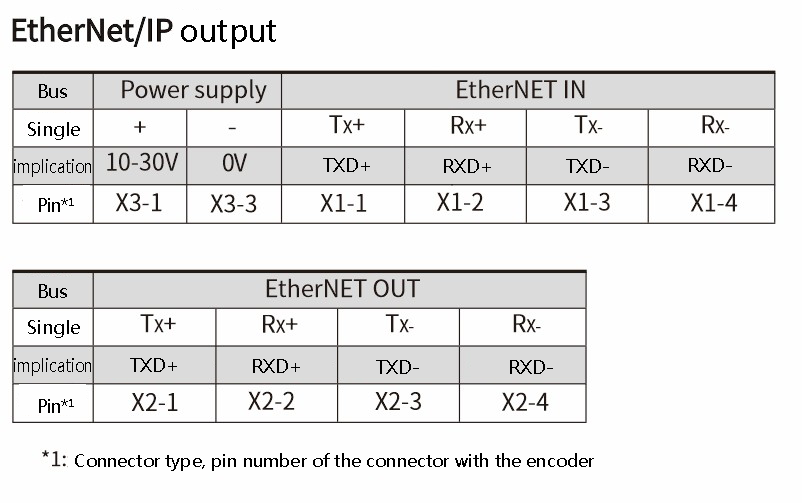

Wiring diagram
