FD100.20-38X40

FD100.20-38X40 absolute value solid shaft encoder can be used in servo motor field, elevator field, industrial robot field, industrial automation control production line field, etc.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Absolute value solid shaft encoder

Very small overall dimension with outer diameter of 38mm, suitable for narrow installation space

Parallel output signal, up to 8 bits

Signal output mode PNP or NPN optional

Plastic code disk is adopted, better temperature scalability

Short circuit protection

Basic parameters

Outside diameter38mm

Shaft sleeve diameter6mm

Maximum speed of revolution3000 r

Maximum shaft loadAxial/radial：30N/20N

Starting torque＜1Ncm

Moment of inertia＜30gcm2

Electrical parameters

Power supply10…30VDC

Output singalPNP or NPN

Output typeOpen-collector output

Output codeGray code

Working current30mA

Max resolution8 bits（256）

Output frequency30KHz

Count directionThe default model is the increase of the count
value in positive rotation (the clockwise
direction is the positive rotation from the
axis side). If the increase is needed in
reverse, please indicate when ordering

Electrical interfaceCable connection：13×0.08mm²

Mechanical parameters

Flange typeClamping flange

MaterialsShell：AL；Flange：AL；axle : stainless steel

WeightAbout 150g

Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ

Surge suppressionIEC 68-2-27；200m/s² 3ms

Environmental conditions

Operating temperature﹣20…+75℃

Storge temperature﹣25…+85℃

Protection classIP50

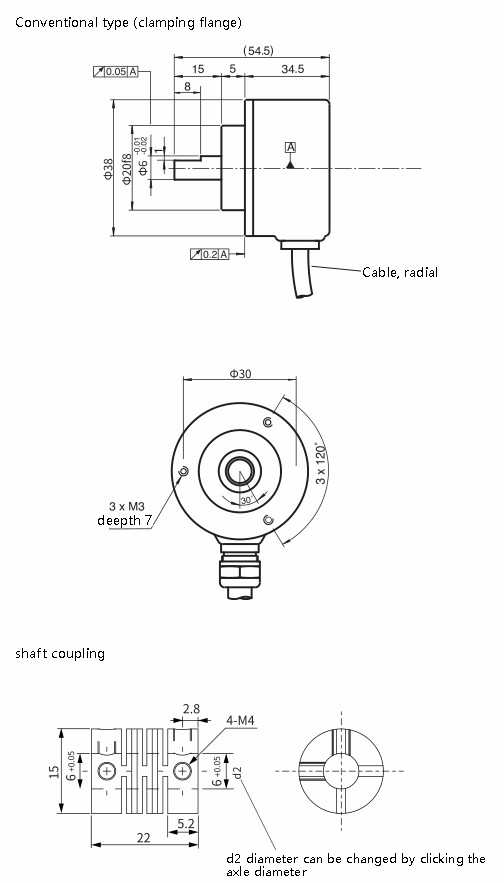

Overall dimensions

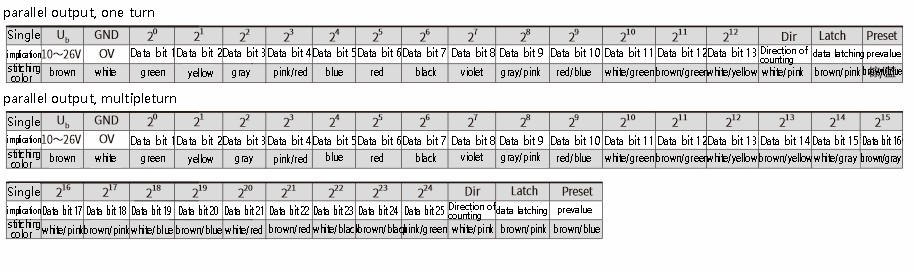

Wiring diagram
