FD100.20-58X40

FD100.20-58X40 absolute value solid shaft encoder can be used in servo motor field, elevator field, industrial robot field, industrial automation control production line field, etc.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Absolute value solid shaft encoder, single turn and multi turn options

General overall dimension, with an outer diameter of 58mm, suitable for most installation occasions

Parallel output signal, up to 29 bits

The signal output mode is push-pull output

Binary code and gray code optional

Short circuit protection, surge protection

Basic parameters

Outside diameter58mm

Shaft sleeve diameter6mm，10mm

Maximum speed of revolution12000 r

Maximum shaft loadAxial/radial：40N/110N

Starting torque＜3Ncm

Moment of inertia＜45gcm2

Electrical parameters

Power supply5…30VDC

Output singalPush-pull, parallel

Output codeBinary/Gray code

Working current150mA

Max resolutionOne turn 13 bits（8192）； 16 bits(65536)
（Specific optional）Cycles 12 bits（4096）

Output frequency400KHz

Count directionThe counting direction can be controlled by the
input signal

Zero bit presetZero bits can be preset through the input signal

Electrical interfaceWiring type: 24×0.18mm² cable（one turn）
30×0.18mm² cable(cycles) (General optional)
Connector：M23（19 pin），one turn
M27（26 pin），cycles (General optional)
For specific types, please consult the manufacturer

Mechanical parameters

Flange typeClamping flange/synchronous flange

MaterialsShell：AL；Flange：AL；axle : stainless steel

WeightAbout 460g

Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ

Surge suppressionIEC 68-2-27；200m/s² 3ms

Environmental conditions

Operating temperature﹣40…+80℃

Storge temperature﹣40…+85℃

Protection classIP65 / IP67

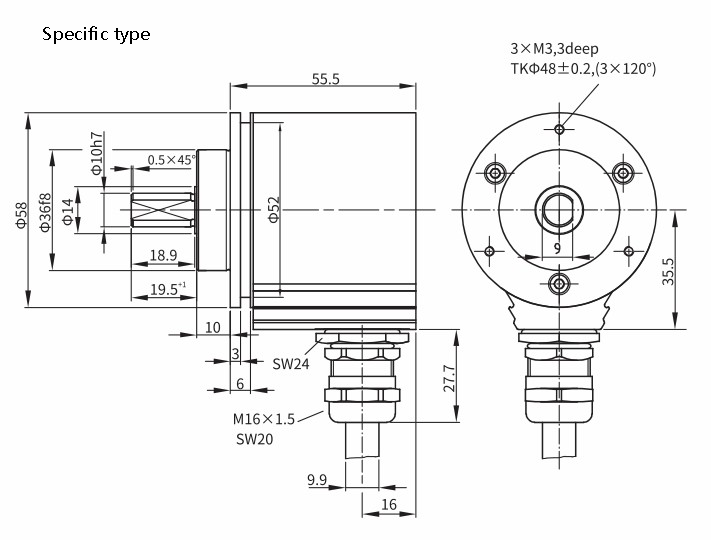

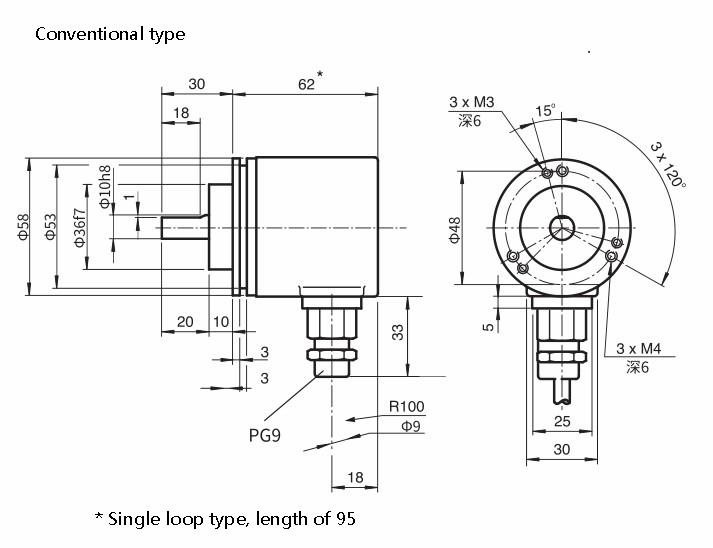

Overall dimensions

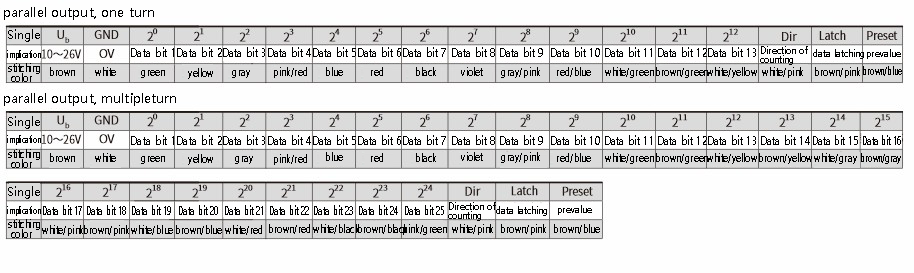

Wiring diagram

FD100.20-58X40接线图-英 .png
