FD100.20-58X41

FD100.20-58X41 absolute value hollow shaft encoder can be used in servo motor field, elevator field, industrial robot field, industrial automation control production line field, etc.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Absolute value hollow shaft encoder, single turn and multi turn options

General overall dimension, with an outer diameter of 58mm, suitable for most installation occasions

Parallel output signal, up to 29 bits

The signal output mode is push-pull output

Binary code and gray code optional

Short circuit protection, surge protection

Basic parameters

Outside diameter58mm

Shaft sleeve diameter6mm，8mm，10mm，12mm

Maximum speed of revolution12000 r

Maximum shaft load——

Starting torque＜3Ncm

Moment of inertia＜30gcm2

Electrical parameters

Power supply5…30VDC

Output singalPush-pull, parallel

Output codeBinary/Gray code

Working current150mA

Max resolution16 bits（65536）

Output frequency400KHz

Count directionThe counting direction can be controlled by the
input signal

Zero bit presetZero bits can be preset through the input signal

Electrical interfaceWiring type: 24×0.18mm² cable（one turn）
Connector：M27（25 pin ），one turn

Mechanical parameters

Flange typeClamping flange/synchronous flange

MaterialsShell：AL；Flange：AL；axle sleeve: stainless steel

WeightAbout 520g

Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ

Surge suppressionIEC 68-2-27；200m/s² 3ms

Environmental conditions

Operating temperature﹣40…+80℃

Storge temperature﹣40…+85℃

Protection classIP54 / IP65

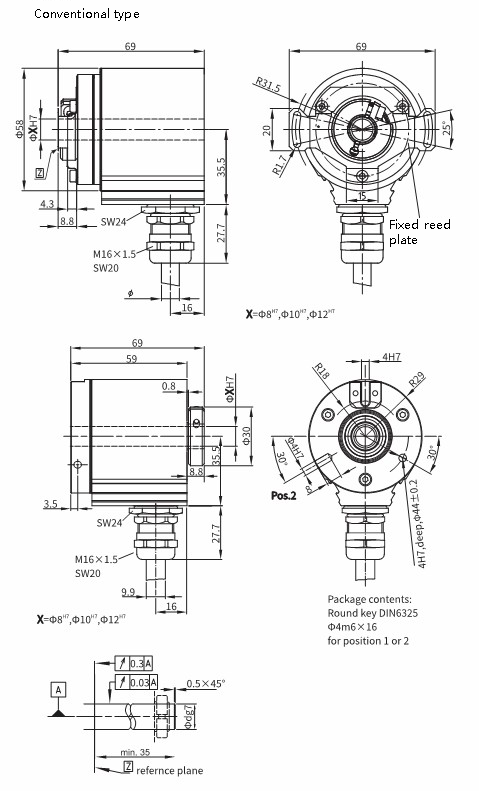

Overall dimensions

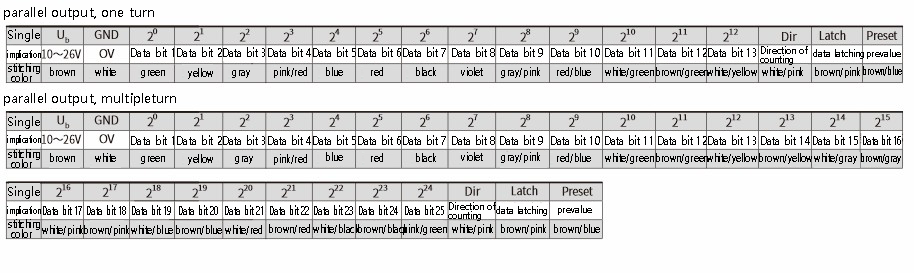

Wiring diagram

FD100.20-58X41接线图-英 .png
