FD100.20-58X42

FD100.20-58X42

FD100.20-58X42 absolute value half empty shaft encoder can be used in servo motor field, elevator field, industrial robot field, industrial automation control production line field, etc.

For detailed product selection, please contact us Return
Product features Technical data Shape & Wiring Downloads Accessories
Function & Features

Absolute value half empty shaft encoder, single turn and multi turn options

General overall dimension, with an outer diameter of 58mm, suitable for most installation occasions

Parallel output signal, up to 29 bits

The signal output mode is push-pull output

Binary code and gray code optional

Short circuit protection, surge protection

Basic parameters
Outside diameter58mm
Diameter of half-air bushing6mm，8mm，10mm，12mm
Maximum speed of revolution12000 r
Maximum shaft load——
Starting torque＜3Ncm
Moment of inertia＜45gcm2
Electrical parameters
Power supply5…30VDC
Output singalPush-pull, parallel
Output codeBinary/Gray code
Working current150mA
Max resolutionOne turn 13 bits(8192)；16 bits(65536) Optional
for specific purposes Cycles 12 bits（4096)
Output frequency400KHz
Count directionThe counting direction can be controlled by the
input signal
Zero bit presetZero bits can be preset through the input signal
Electrical interfaceWiring type: 24×0.18mm² cable（one turn）
30×0.18mm² cable(multiple turn) (General
optional)
Connector：M23（19 pin），one turn
M27（26 pin），(multiple turn) (General
optional) For specific types, please consult the
manufacturer
Mechanical parameters
Flange type——
MaterialsShell：AL；Flange：AL；axle sleeve: stainless steel
WeightAbout 460g
Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ
Surge suppressionIEC 68-2-27；200m/s² 3ms
Environmental conditions
Operating temperature﹣40…+80℃
Storge temperature﹣40…+85℃
Protection classIP65 / IP67

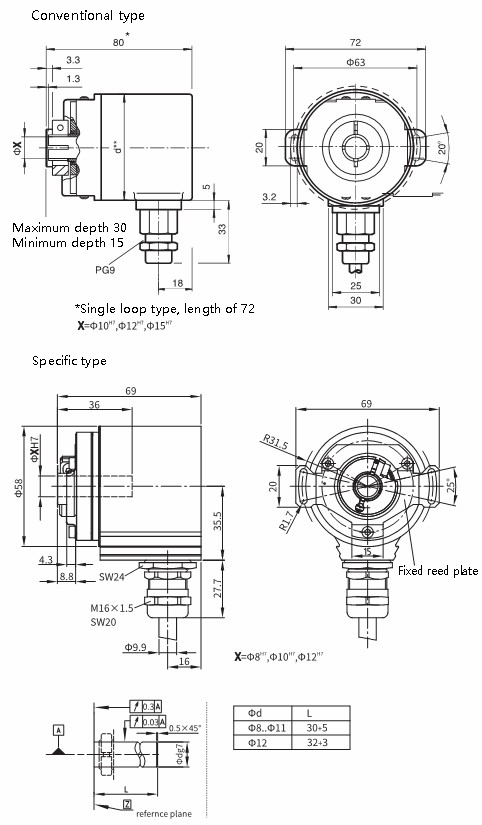

Overall dimensions

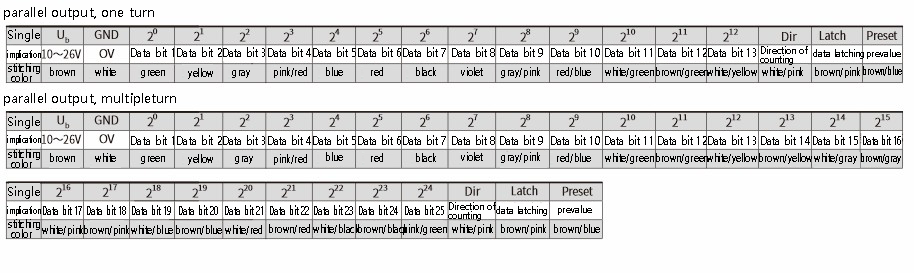

Wiring diagram
