FD-L300

FD-L300 laser ranging sensor is designed to measure the range of fixed or moving objects.
Type of sample：FD-L300-P1N1.*

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Measuring range up to 300m, if the use of reflector, up to 3000m

The use of infrared laser beam, safe to the human eye

Suitable for red aiming laser, easy to aim at the measured object

Own heating device

Programmable switching output and analog output

Alarm distance range can be set

Can adapt to harsh outdoor environment

The output unit of the measured value can be set

Diversity of priming measurement methods

Basic parameters

Measurement range0.5…300m，reachable using a reflector 3000m

Measurement accuracy±20mm

Resolution ratio1mm

Laser classclass 2，according to EN60825，C.D.R.H

Electrical parameters

Power supply10…30VDC

Data interfaceRS232 / RS422，Profibus，Profinet

Digital outputProgrammable

Analog output4…20mA

Mechanical parameters

MaterialsAluminum case

Boundary dimension136×57×104mm（L×W×H）

Weight2.5Kg

Environmental conditions

Operating temperature﹣40…+70℃

Protection classIP67

Overall dimensions

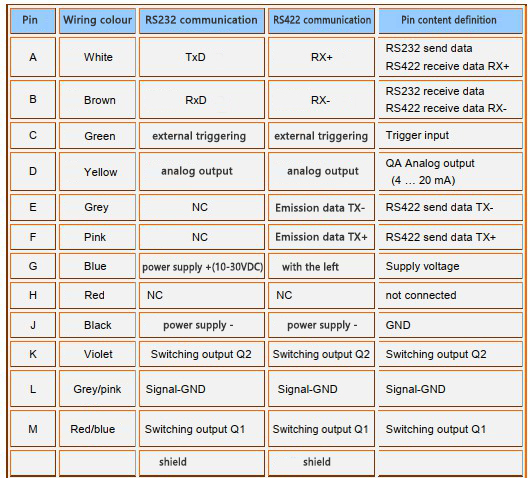

Wiring diagram
